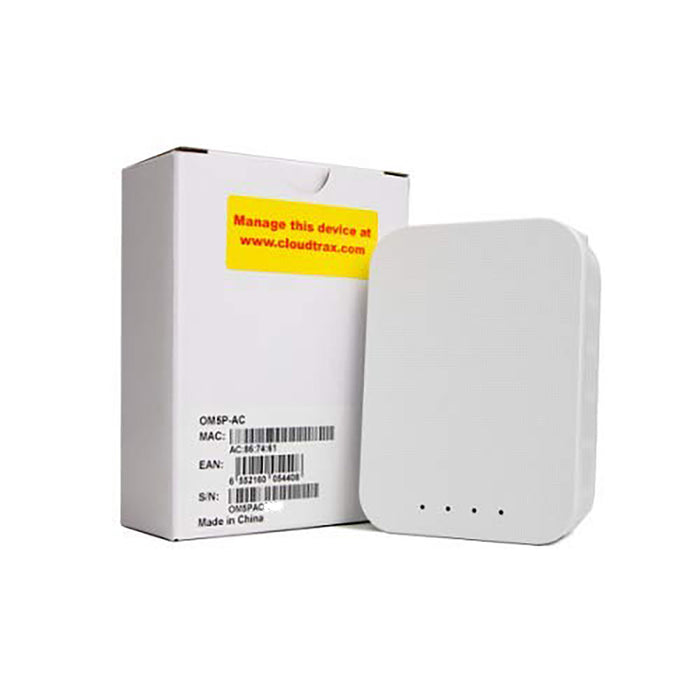

Open-Mesh OM5P-AC FIRST Robotics Competition Robot Radio

by AndyMark
$148.00 - $148.00
$148.00
$148.00
$148.00 - $148.00
$148.00
SKU am-3205
  • Description
  • Specifications
  • This product is not legal for the 2025 FRC season. Only China and Taiwan will continue to use OM5P radios. For more information, check out this FIRST Blog.
    This item is available for FIRST Robotics Competition teams only. This router is not usable outside this application.

    This item is restricted for shipment in some countries. Please check international shipping restrictions before ordering.
    Setup directions for this radio can be found here, https://docs.wpilib.org/en/stable/docs/getting-started/getting-started-frc-control-system/radio-programming.html
    Announced as the 2017-2022 Radio for the FIRST Robotics Competition.
    To comply with new FCC (USA) and IC (Canada) regulations, this device does not allow non-Open Mesh firmware to be loaded, and no SSH access within the US or Canada. It also requires a new approval process for custom.sh files

    This radio will ship with default firmware and is only allowed to be used with Open Mesh firmware and FIRST Robotics Competition approved firmware.

    Compact size perfect for robot applications where WiFi is needed, including in the FIRST Robotics Competition environment. High speed, dual band 1.17 Gbps (300+867 Mbps) 802.11ac mini cloud-managed access point with 802.3af PoE support, dual Gigabit Ethernet ports and four internal antennas.

    A power supply is not included with this Radio, 12V - 24V DC @ 1A Input, or PoE (24V Passive PoE or 48V 802.3af PoE)


    Features:
    • Dual Band
      • Deploy concurrent 2.4GHz + 5GHz ac-ready networks to let newer phones, tablets and laptops fly while still supporting legacy devices.
    • High performance
      • The OM5P-AC is available in a 2x2, 1.17 Gbps MIMO configuration for exceptional speed over short distances in dense environments
    • 802.3af PoE
      • Support for 802.3af PoE and 12-24v passive PoE to power your access points up to 300 feet away over a single Ethernet cable.
    • Antenna: Two internal dual band 2x2 (2.4 GHz) + 2x2 (5 GHz)
    • Input: 12 VDC @ 1 A via barrel plug, 12 - 24 V passive PoE
    • Memory: 128 MB DRAM
    • Port(s): 2 x Gigabit Ethernet (WAN and LAN)
    • Power: 19 dBm (79 mw) flat power
    • Processor: 720 MHz QCA9557 + QCA9882 MIPS 74K
    • Radio: 802.11b/g/n 2.4 GHz + 802.11a/n/ac 5 GHz
    • Range: 25-50 ft. indoor (1-2 walls) 100 ft. outdoor
    • Size: 3.75 in. x 2.75 in. x 1 in.
    • Speed: 1.17 Gbps (300+867 Mbps)
    • WLAN Standard: 802.11 a/g/n/ac 2.4 + 5 GHz
    • Weight: 0.291 lbs.
