This product has been discontinued.

PG Hex Coupling - am-3410_1 - Image-1 - migrated

PG Hex Coupling

by AndyMark

$10.00 - $10.00

$10.00

$10.00

$10.00 - $10.00

$10.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued

Description
Specifications
Documentation

Note: This product is obsolete, we recommend the use of PG gearmotors with integrated hex shafts.

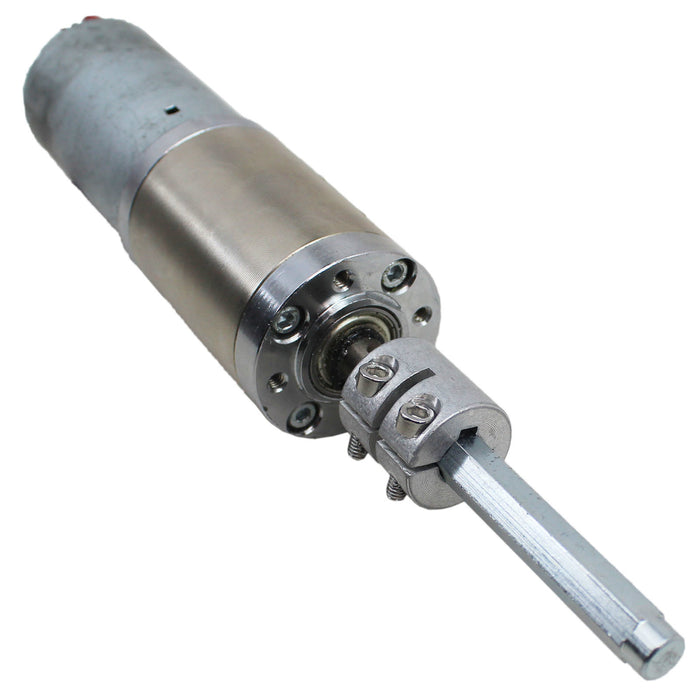

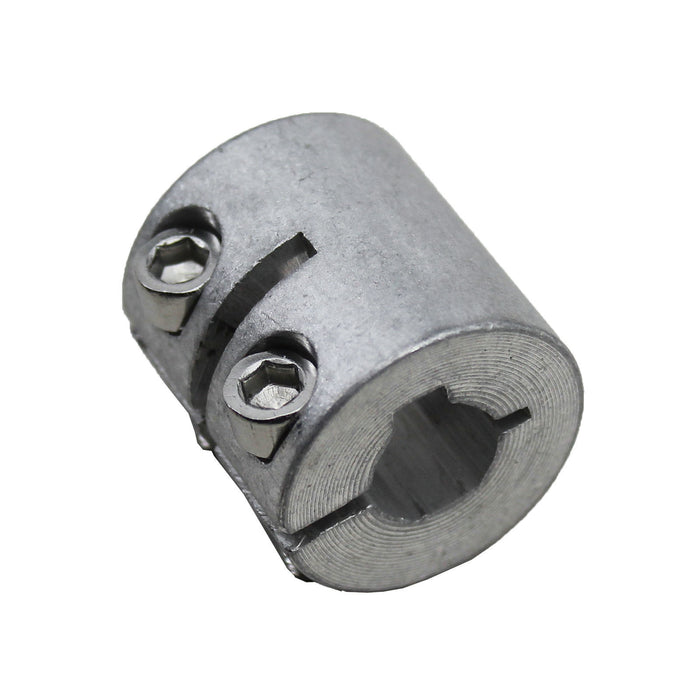

This is a unique coupling designed intended to join together the 10mm diameter output shaft of a PG gearmotor with a 3/8 in. hex shaft. Thanks to the clamping design, this coupling is compliant enough to grab on to both the 10mm output shaft of a PG gearmotor and/or a 3/8 in. hex shaft. If you want to extend your PG motor shaft with a 3/8 in. hex shaft, here is your solution!

The design of this part was inspired by the patient requests of long-time FIRST mentor and WFFA winner, Bill Berggren of FRC team 1538, the Holy Cows.
- Bore: 0.397 in. Round [10 mm] thru hole, with 0.161 in. [4 mm] keyway, AND a 3/8 in. hex broached hole
- Length: 1.00 in.
- Material: 6061 Aluminum
- Outside Diameter: 0.96 in.
- Weight: 0.06 lbs.
CAD Files
am-3410 PG-Hex Coupling.STEP
Layout Prints
am-3410 PG-Hex Coupling.pdf
