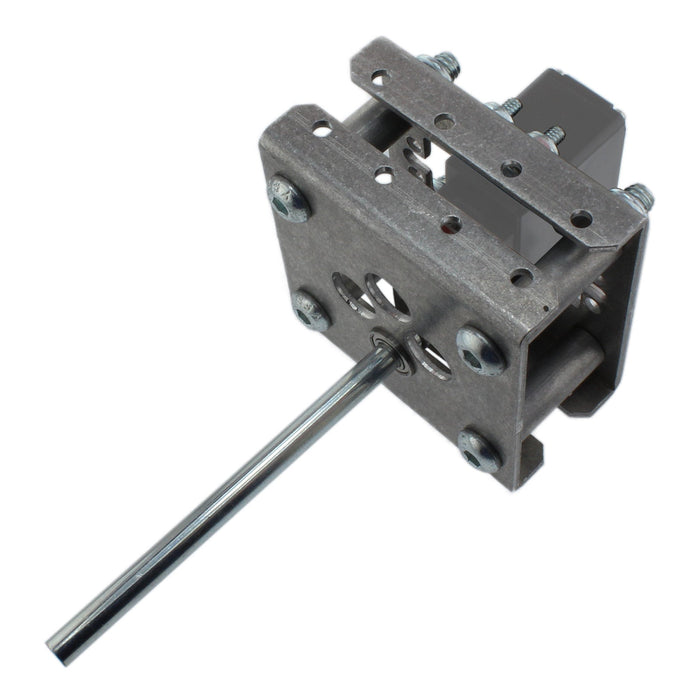

PicoBox Servo

by AndyMark
$48.00 - $48.00
$48.00
$48.00
$48.00 - $48.00
$48.00
These highly configurable gearboxes are a robust solution for teams to make fine adjustments to the output speed and torque of drivetrains, mechanisms and more.
SKU am-3906
  • Description
  • Specifications
  • The PicoBox gearboxes are designed specifically for FIRST Tech Challenge teams. All PicoBox gearboxes are designed to work with other building systems that FIRST Tech Challenge teams are familiar with, because they are built to work around a base 16 mm center-to-center hole pattern. The flanges on the PicoBox gearboxes are reversible while maintaining a base 16 mm hole pattern. Additionally, all PicoBox gearboxes utilize the same overall plate style for both the input plate and output plate, allowing for different configurations such as mounting the servo and output shaft onto the same side of the gearbox.

    The PicoBox Servo is a unique member of the PicoBox line. Its purpose is to provide a robust mount for a HiTec standard servo, Futaba standard servo, or any standard servo. This Gearbox includes a 16 tooth #25 series Ninja Star sprocket and a Servo Nub. This product is ideal for when mechanisms need a stronger anchor point but don't need the power and torque of a motor, or when you want to use a servo with set screw and a standard 6 mm output shaft. This incredible gearbox comes in under 0.5 pounds.

    Compatible Servos:
    This gearbox does not include a servo, so you can install the right one for your application. We have tested and confirmed it works great with am-2587. Other servos may work as well if they feature a 24 Tooth C1 Spline and fit inside the servo body cavity of the servo plate. The servo cavity is 1.6 inches tall by 0.8 inches wide.
