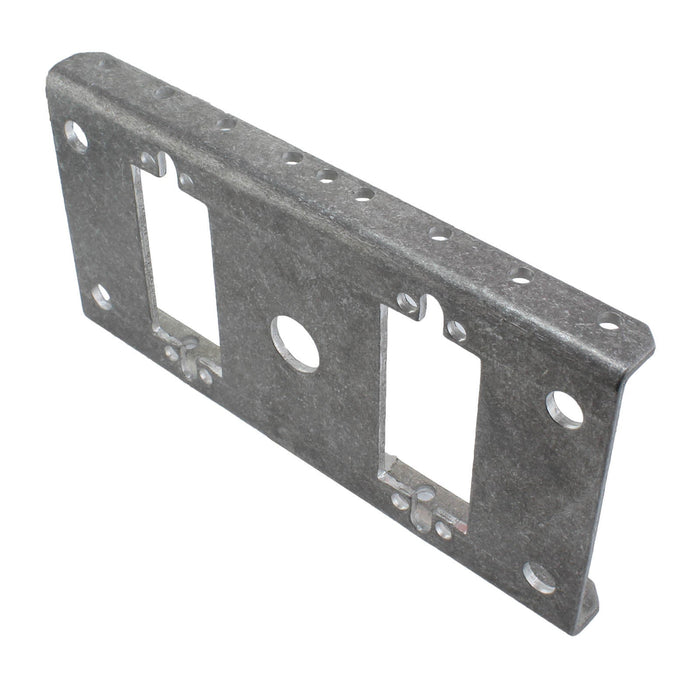

PicoBox Twin Servo Motor Plate

by AndyMark
Save 58% Save 58%
$12.50
$12.50 - $12.50
$12.50
$5.30
$5.30 - $5.30
$5.30
This plate is used within the PicoBox Servo Micro gearbox.
SKU am-3697
  • Description
  • Specifications
  • Documentation

  • This plate accepts up to two servos and contains mounting features to secure the gearbox to other robot components.

    Compatible Servos:
    This gearbox does not include a servo, so you can install the right one for your application. We have tested and confirmed it works great with am-2587, am-2586, am-0010, and am-2543.

    Other servos may work as well if they feature a 24 Tooth C1 Spline and fit inside the servo body cavity of the servo plate. The servo cavity is 1.6 inches tall by 0.8 inches wide.
    • Depth: 0.50 in.
    • Height: 2.52 in.
    • Length: 5.039 in.
    • Material: 5052 Aluminum

  • CAD Files

    am-3697 Picobox Twin Servo Motor Plate REV2.STEP

    Layout Prints

    am-3697 Picobox Twin Servo Motor Plate REV2.PDF
