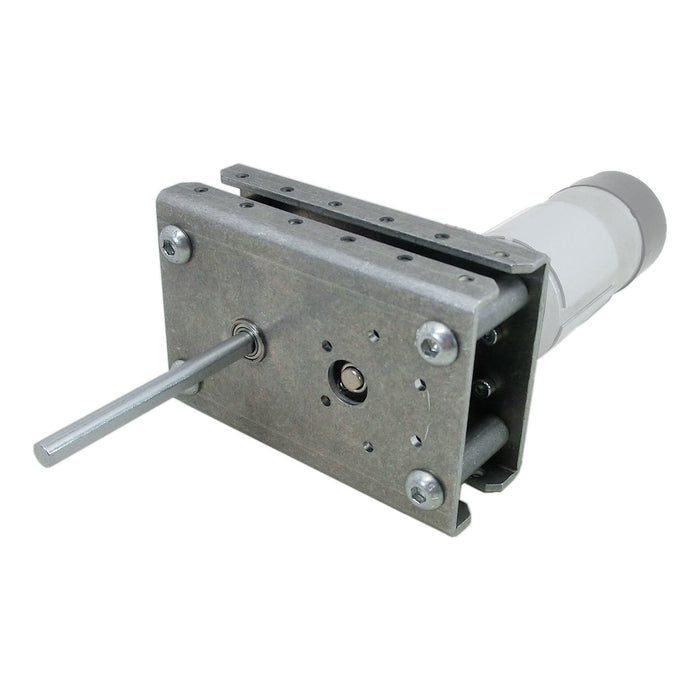

he PicoBox Uno is a single reduction, single motor input gearbox that utilizes steel 32DP gears.
SKU am-3447
Usually Ships in 3 to 5 Business Days
  • Description
  • Gearbox Ratios
  • Specifications
  • Documentation
  • The PicoBox gearboxes are designed specifically for FIRST Tech Challenge teams. These highly configurable gearboxes are a robust solution for teams to make fine adjustments to the output speed and torque of drivetrains, mechanisms and more. All PicoBox gearboxes are designed to work with other building systems that FIRST Tech Challenge teams are familiar with, because they are built to work around a base 16 mm center-to-center hole pattern. The flanges on the PicoBox gearboxes are reversible while maintaining a base 16 mm hole pattern. Additionally, all PicoBox gearboxes utilize the same plate design as both the input plate and output plate, allowing for different configurations such as mounting the motor and output shaft onto the same side of the gearbox.

    This gearbox accepts one NeveRest motor as its input, and has a robust steel 6 mm D shaft for it's output.

    Gear Ratios:
    The kit comes with 3 different gear ratio options, so that you can experiment and understand how changing the gear ratio affects the driving performance of the TileRunner.
    • 45 Tooth and 35 Tooth gear combination yields a 1:0.78 over drive
    • Two 40 Tooth gears yield a 1:1 ratio
    • 35 Tooth and 45 Tooth gear combination yields a 1:1.28 reduction

    Motor Input:
    The PicoBox Uno is not compatible with the NeveRest Motor Only (am-3104) or NeveRest Orbital line, as the PicoBox Uno requires the use of the NeveRest Classic gearbox as part of the motor input assembly. The PicoBox Uno accepts up to one of the following motors at a time: Weight: ~1 lbs.

    Product Usage:
    All AndyMark gearboxes require grease for proper operation and long life. We suggest using our red tacky grease, am-2768. We also encourage that the user powers the gearbox continuously for 30 minutes without grease to allow the gear teeth to wear in. While we do design with short runtimes in mind, this 'run in' period for smooth gearbox operation, is recommended. Once the run in period is complete, clean the gears, then thoroughly grease the gear teeth to ensure smooth operation. The gears should regularly be cleaned, inspected, and greased again to ensure proper operation and longer life of your gearbox.


    Individual Components within Kit:
    If you need the output shaft to be a 1/2 in. Hex, check out the 6 mm D to 0.5 in. Hex-Shaft Adapter (am-3744a)

  • Please contact support@andymark.com if you do not see a Ratio Table
    • Motor Input: NeveRest Classic
    • Motor Quantity: 1
    • Ratio: 1:0.78, 1:1, 1:1.28
    • Weight: ~ 1 lbs.

  • CAD Files

    am-3447 PicoBox Uno REV2.STEP

    Guides

    am-3447 PicoBox Uno User Guide.pdf

    Layout Prints

    am-3447 PicoBox Uno Layout REV2.PDF
