This product has been replaced by am-3699a_NF
Powerpole Distribution Board - am-3699 - migrated

Powerpole Distribution Board

by AndyMark
$33.00 - $33.00
$33.00
$33.00
$33.00 - $33.00
$33.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-3699a_NF

This product is currently unavailable for purchase

SKU am-3699
  • Description
  • Specifications
  • Documentation
  • Robots electronics can be expensive, but your prototypes and power management do not have to be! This Power Pole Distribution Board is unlike anything you've seen before.

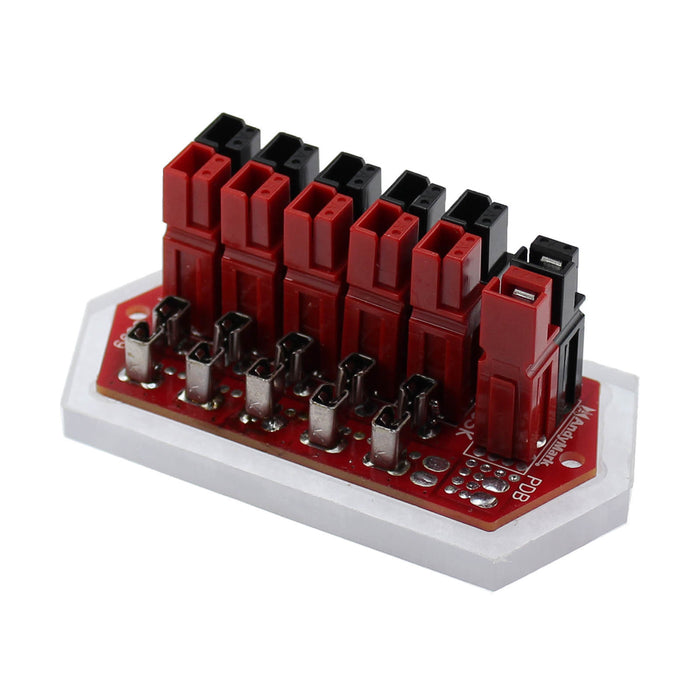

    This board features five individually fused outputs. The input and outputs use PP45 housings allowing for easy and quick connections using 15, 30 or 45 amp connectors. The fuse slots are designed to use standard mini or auto-resetting breakers like am-4112. Plenty of power can be fed through this board.

    For testing, we connected this board to a rig designed to stall a motor and used wire to connect the fuse terminals. This setup allowed us to pass far more than the typical 30 amps that would be allowed per "channel". With a stalled motor attached to this board, a current draw of more than 100 amp for ten seconds was sustained, resulting in a burnt-out motor, and a perfectly fine Power Pole Distribution Board.
    Please note the CAD includes the mating powerpole connectors and breakers. This product is for the board and case only. If you want the additional accessories please purchase the am-4067 bundle.
    • Maximum Current: 100 A for Several Seconds
    • Voltage: Designed for 12 V Systems

  • CAD Files

    am-3699 PP45 Distribution Board.STEP
