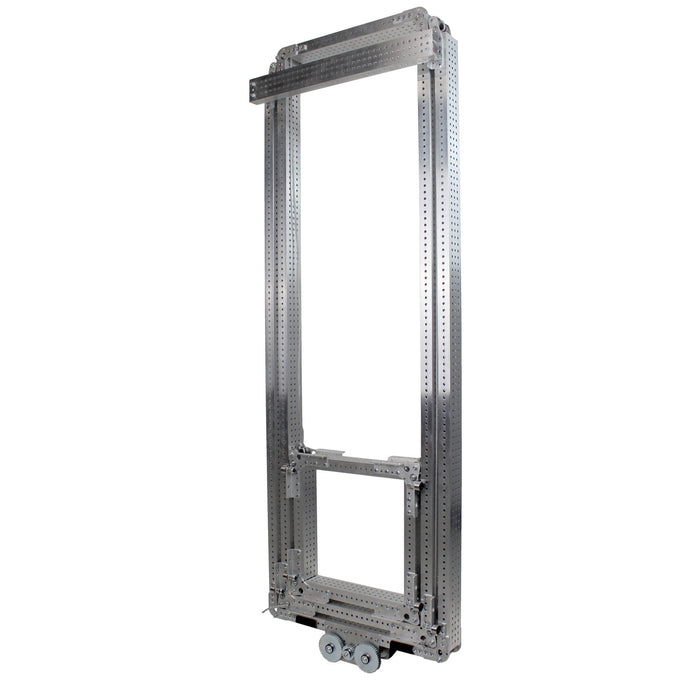

Powered Elevator

Extrusion is not included in these kits.

This Elevator is designed to make building an elevator as simple as possible. With a detailed assembly guide and carefully designed components, the Powered Elevator makes some of the most difficult things about elevators for FIRST Robotics Competition easy by providing a simple string-driven solution to lift an assembly up and down. The Powered Elevator is easily customizable to your liking, allowing you to rig it as a continuous elevator or as a cascade elevator by adding additional stages to increase your travel. This Elevator is designed around the use of Pre-drilled tubing, the standard for FRC construction, and each stage stays on our classic 10-32 0.5 in. grid.

Note: The included Powertrain kit requires a planetary gearbox with a 3 in. output shaft and a 2 in. bolt circle such as a Sport Gearbox.

Powered Elevator Corner Kits, Powered Elevator Powertrain Kits, and Powered Elevator Individual Stage Kits are all available to be purchased individually.

Included Items:

1 Stage Elevator Kit (am-5560):

• 1 - 10-32 x 0.5 in. Socket Head Cap Screw (am-1002)

• 16 - 8 mm Flat Washer (am-1009)
• 16 - 10-32 x 2.5 in. Socket Head Cap Screw (am-1024)
• 6 - 1/4-20 x 0.5 in. Button Head Cap Screw (am-1039)
• 6 - 1/4 in. Flat Washer (am-1027)
• 18 - 10-32 Nylock Jam Nut (am-1063)
• 144 - 3/16 in. Diameter 0.126 to 0.25 in. Grip Steel Rivet (am-1226)
• 2 - 10-32 x 2.75 in. Socket Head Cap Screw (am-1397)
• 8 - M8 x 1.25 Nylock Nut (am-1509)
• 2 - #10 x 0.75 in. Fender Washer (am-1523)
• 8 - 0.192 in. ID 0.313 in. OD 2.000 in. Long Aluminum Spacer (am-1582)
• 4 - 0.330 in. ID 0.470 in. OD 1.180 in. Long Nylon Spacer (am-1610)
• 8 - 0.319 in. ID 0.438 in. OD 0.313 in. Long Aluminum Spacer (am-1678)
• 1 - Great Red Tacky Grease, 14.2 gram (am-2768)
• 7 - 1/2 in. Hex ID 1.125 in. OD Shielded Flanged Bearing (FR8ZZ-HexHD) (am-2986)
• 16 - 0.192 in. ID 0.375 in. OD 1.000 in. Long Aluminum Spacer (am-3876)
• 3 - 0.063 in Long Hex Molded Spacer (am-3948-063)
• 2 - 0.125 in Long Hex Molded Spacer (am-3948-125)
• 1 - 0.375 in Long Hex Molded Spacer (am-3948-375)
• 1 - 0.500 in Long Hex Molded Spacer (am-3948-500)
• 8 - 8 mm ID 22 mm OD Shielded Bearing (608ZZ) (am-4456)
• 3 - 2 Stage Climber in a Box Winch Spool Pulley (am-4647_2000)
• 3 - 36 tooth Standard 20 DP Gear (am-4709)
• 3 - Chain-in-tube West Coast Drive Chassis Output Shaft (am-4883)
• 1 - 1/2 in. Hex Ratchet Plate (am-5271)
• 16 - 5 mm ID 15 mm OD Shielded Flanged Bearing (F695ZZ) (am-5469)
• 8 - M8 Cam Follower (am-5545)
• 1 - Powered Elevator Powertrain Transmission Plate (am-5555)
• 8 - Powered Elevator Internal Corner Bracket (am-5556)
• 8 - Powered Elevator Passthrough Corner Bracket (am-5557)
• 1 - Powered Elevator Powertrain Shaft Support Plate (am-5559)
• 4 - 10 feet of Rope 1/8 in. diameter (am-4559)
• 1 - Bearing Retention Plate (am-5273)

2 Stage Elevator Kit (am-5551):

• 1 - 10-32 x 0.5 in. Socket Head Cap Screw (am-1002)

• 32 - 8 mm Flat Washer (am-1009)
• 4 - 10-32 x 1.5 in. Socket Head Cap Screw (am-1014)
• 28 - 10-32 x 2.5 in. Socket Head Cap Screw (am-1024)
• 6 - 1/4-20 x 0.5 in. Button Head Cap Screw (am-1039)
• 6 - 1/4 in. Flat Washer (am-1027)
• 26 - 10-32 Nylock Jam Nut (am-1063)
• 204 - 3/16 in. Diameter 0.126 to 0.25 in. Grip Steel Rivet (am-1226)
• 2 - 10-32 x 2.75 in. Socket Head Cap Screw (am-1397)
• 16 - M8 x 1.25 Nylock Nut (am-1509)
• 4 - #10 x 0.75 in. Fender Washer (am-1523)
• 16 - 0.192 in. ID 0.313 in. OD 2.000 in. Long Aluminum Spacer (am-1582)
• 4 - 0.330 in. ID 0.470 in. OD 1.180 in. Long Nylon Spacer (am-1610)
• 16 - 0.319 in. ID 0.438 in. OD 0.313 in. Long Aluminum Spacer (am-1678)
• 4 - 10-32 Threaded 1 in. Long 0.375 in. Dia. Standoff (am-1701)
• 1 - Great Red Tacky Grease, 14.2 gram (am-2768)
• 7 - 1/2 in. Hex ID 1.125 in. OD Shielded Flanged Bearing (FR8ZZ-HexHD) (am-2986)
• 16 - 0.192 in. ID 0.375 in. OD 1.000 in. Long Aluminum Spacer (am-3876)
• 3 - 0.063 in Long Hex Molded Spacer (am-3948-063)
• 2 - 0.125 in Long Hex Molded Spacer (am-3948-125)
• 1 - 0.375 in Long Hex Molded Spacer (am-3948-375)
• 1 - 0.500 in Long Hex Molded Spacer (am-3948-500)
• 1 - 24 Tooth Standard 20 DP Gear (am-4214)
• 16 - 8 mm ID 22 mm OD Shielded Bearing (608ZZ) (am-4456)
• 3 - 2 Stage Climber in a Box Winch Spool Pulley (am-4647_2000)
• 2 - 48 Tooth Standard 20 DP Gear (am-4714)
• 3 - Chain-in-tube West Coast Drive Chassis Output Shaft (am-4883)
• 1 - 1/2 in. Hex Ratchet Plate (am-5271)
• 24 - 5 mm ID 15 mm OD Shielded Flanged Bearing (F695ZZ) (am-5469)
• 16 - M8 Cam Follower (am-5545)
• 1 - Powered Elevator Powertrain Transmission Plate (am-5555)
• 12 - Powered Elevator Internal Corner Bracket (am-5556)
• 8 - Powered Elevator Passthrough Corner Bracket (am-5557)
• 2 - Powered Elevator External Corner Bracket, Side A (am-5558_A)
• 2 - Powered Elevator External Corner Bracket, Side B (am-5558_B)
• 1 - Powered Elevator Powertrain Shaft Support Plate (am-5559)
• 4 - 10 feet of Rope 1/8 in. diameter (am-4559)
• 1 - Bearing Retention Plate (am-5273)

--------------------------------------------------------------------------------------------------------
