Raptor Track Drive with Black Belts and ToughBox Mini Bundle - BDRTTA - migrated

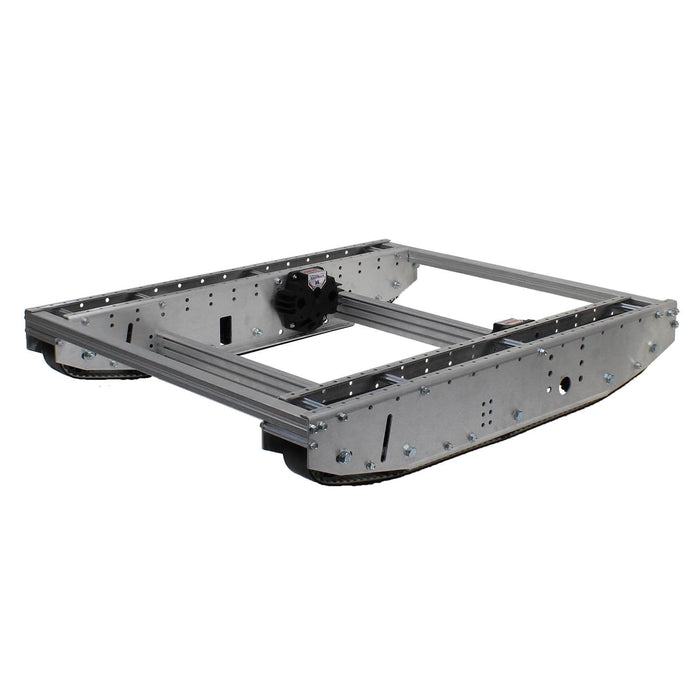

Raptor Track Drive with Black Belts and ToughBox Mini Bundle

by AndyMark
Save 50% Save 50%
$1,123.00
$1,123.00 - $1,123.00
$1,123.00
$561.50
$561.50 - $561.50
$561.50
SKU BDRTTA
  • Description
  • This bundle features our efficient and low profile Raptor Track Drive Base, paired with high-traction smooth black urethane treads and Toughbox Mini gearboxes with a 5.95:1 overall ratio. In this setup, this configuration of the Raptor is capable of speeds up to 13.5 ft/s. The black urethane treads are ideal where traction is a must, on a variety of surfaces including smooth flooring, many plastics and tight pile carpet. The Raptor Track Drive is an ideal foundation for mobile tank-track style platforms, and has many mounting options with several hole patterns integrated into the side plates of the drive system. This drive base bundle ships as an un-assembled kit of parts, and includes all hardware, belts, gearboxes and chassis structure required to build this drive base. This product does not include motors.

    Included Items:

    • 2 - Bearing Kits
    • 2 - Motion Hardware Kits
    • 2- Spacer Kits
      • 6 - AS62-18-34 AL Spacer (am-1514)
      • 4 - MAS16-10-5 AL Spacer (am-1515)
      • 4 - .125t x 443ID Nylon Spacer (am-2930)
      • 2 - 500Hex Molded Spacer x 1in (am-3948-1000)
      • 1 - 500Hex Molded Spacer x 0.188in (am-3948-188)
    • 2 - Axle Kits
      • 5 - 3/8-16 x 4.25 Bolt (am-1297)
      • 5 - 3/8-16 Nylock Jam Nut (am-1394)
      • 2 - 3/8 Washer (am-1393)
    • 80 - 1/4-20 x 750 Thread Forming Screw (am-1310)
    • 60 - 10-24 x 1.25 Thread Forming Screw (am-1266)
    • 20 - 3.375 in. Churro (am-2569)
    • 10 - 20T Track Drive Pulley Half, Rev 4 (am-3298a)
    • 1 - Raptor Inside Plate, Left (am-4011L)
    • 1 - Raptor Outside Plate, Left (am-4012L)
    • 1 - Raptor Inside Plate, Right (am-4011L)
    • 1 - Raptor Outside Plate, Right (am-4012R)
    • 1 - #35 Roller Chain, 10 ft. (am-0367)
    • 2 - Black Urethane Flat Belt (am-4017)
    • 4 - Peanut Extrusion, 3 ft. (am-3090-3)
    • 4 - Walnut Extrusion, 3 ft. (am-3478-3)
    • 2 - 05.95:1 Pocketed Gears - AM14U Shaft - No Plate - ToughBox Mini S (TB2C5XUX)
    ----------------------------------------------------------------------------------------------------
