RAW Box Output Shaft

Save 42% Save 42%
Original price $22.00
Original price $22.00 - Original price $22.00
Original price $22.00
Current price $12.80
$12.80 - $12.80
Current price $12.80

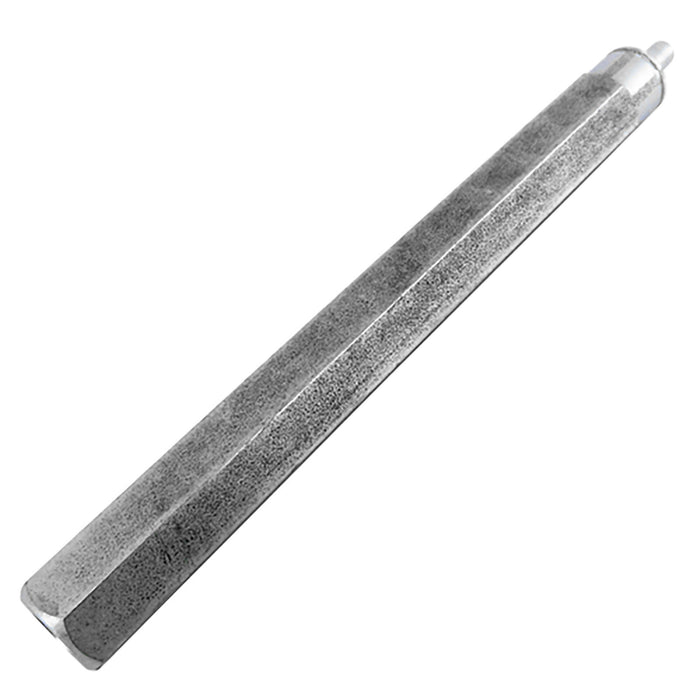

This steel shaft is used as the output shaft of the RAW Box gearbox.
SKU am-2365a
  • Description
  • Specifications
  • Documentation
  • This shaft can be seen as the output shaft in our RAW Box. This steel shaft may find a home in your custom gearboxes as well. The hex end features a 1/4-20 tapped hole for capturing components on the shaft and the rear has a seat for a 0.5 in. round bearing as well as a 0.25 in. diameter magnet for reading off encoders.

    • Finish: Zinc Plated
    • Material: 4140 Steel
    • Overall Length: 8.5 in.
    • Thread: 1/4-20 Tapped 0.5 in. Deep
    • Weight: 0.374 lbs.
    • Width: 0.49 in.
  • CAD Files

    am-2365a RAW Box Output Shaft.STEP

    Layout Prints

    am-2365a RAW Box Output Shaft.PDF
