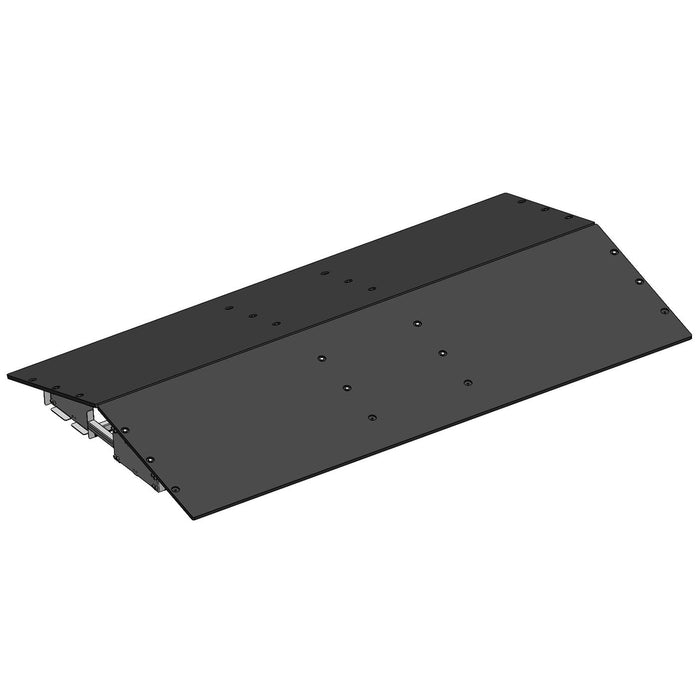

This assembly is intended to simulate the structure of the BUMP from the 2026 FRC game, REBUILT™. Using a different construction style to reduce the cost to teams, this version of the BUMP provides support to the textured HDPE surface in almost all the same locations and has the same height and width as the real bump. The top surface is almost identical to the real field with a few exceptions:

1. The top plate is 72.5” long instead of the field standard 73”
2. The top surface does not have the extra, un-counterbored holes between the primary mounting holes.
3. The plastic color is black as opposed to red or blue on the real field, but the surface texture is the same.
4. All of these changes have been made to reduce the manufacturing cost and bring teams a lower priced product without substantially impacting performance.

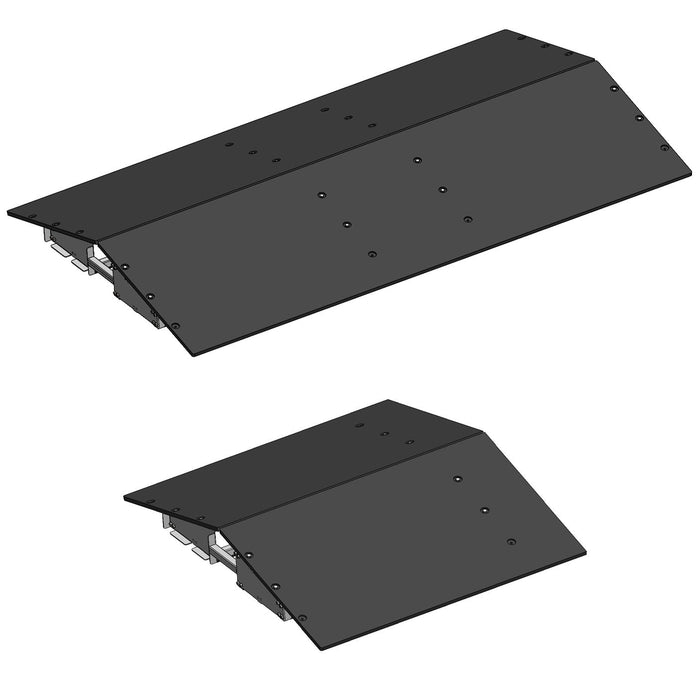

This assembly is also offered in a “half” size version (36.25" wide) for teams who want to test with the same surface conditions as the real field but don’t want to invest in the full-length BUMP. If attempting to construct a full field you will need (4) "full" BUMPs, two per alliance, one on either side of the HUB.

This assembly is intended to support FRC-legal robots only! It should not be used to support humans!

• Material: HDPE
• Thickness: 0.5 in.
• Width: 11.8 in.

Guides

CAD Files

Components of am-5770_full:

• 2 - REBUILT™ Bump HDPE Sheet (am-5761_full)
• 8 - REBUILT™ Bump Bracket AM Version (am-5762)
• 16 - 28.467 in. Long 1 x 1 Peanut Extrusion (am-3090-2847)
• 4 - 13.796 in. Long 1 x 1 Peanut Extrusion (am-3090-1380)
• 4 - 6 in. in. Long 1 x 1 Peanut Extrusion (am-3090-0600)
• 1 - 19 ft Long 1 in. Wide Adhesive Hook Side Hook and Loop
• 96 - 1/4-20 x 0.75 in. Thread Forming Screw Hex Washer Head (am-1310)
• 16 - 1/4-20 x 0.75 in. Hex Head Screw (am-1626)
• 16 - 1/4-20 Nylock Nut (am-1015)
