Robits 20 DP Gears

Name: Robits 20 DP Gears
Brand: AndyMark
SKU: am-5020_25
Price: 1.9 USD
Availability: InStock

by AndyMark

Save up to 50%

$3.80 USD - $4.50 USD

$3.80 USD

$1.90 USD - $2.25 USD

$1.90 USD

These gears are a vital part of the Robits Building System.

Quantity

SKU

Description
Specifications
Documentation

These gears are a vital part of the Robits Building System. For ease of use, each gear has its tooth count inscribed on each face. Use with Robits motor mounting brackets to create an easily swappable gearbox.

Part Number	Tooth Count	Hex Bore (in.)	Outside Dia (in.)	Pitch Dia (in.)

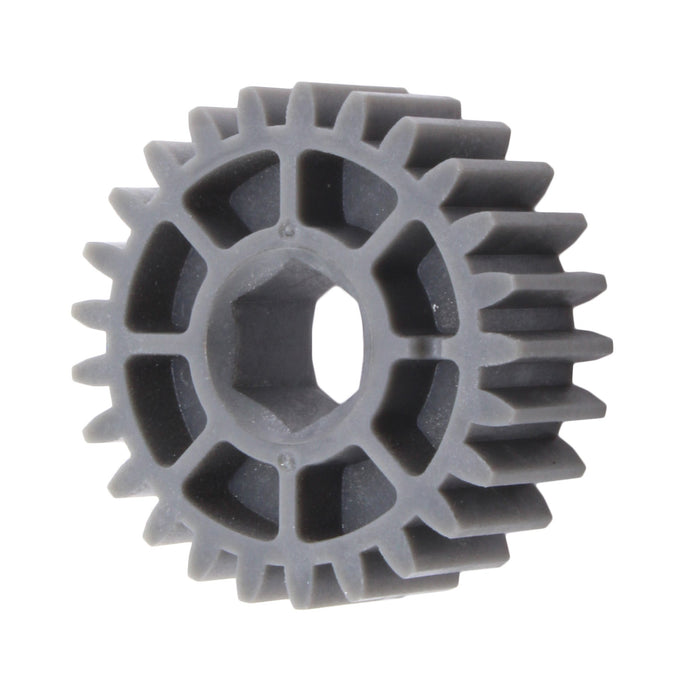

am-5020_25	25	0.375 Hex	1.35	1.250
am-5020_30	30	0.375 Hex	1.60	1.5

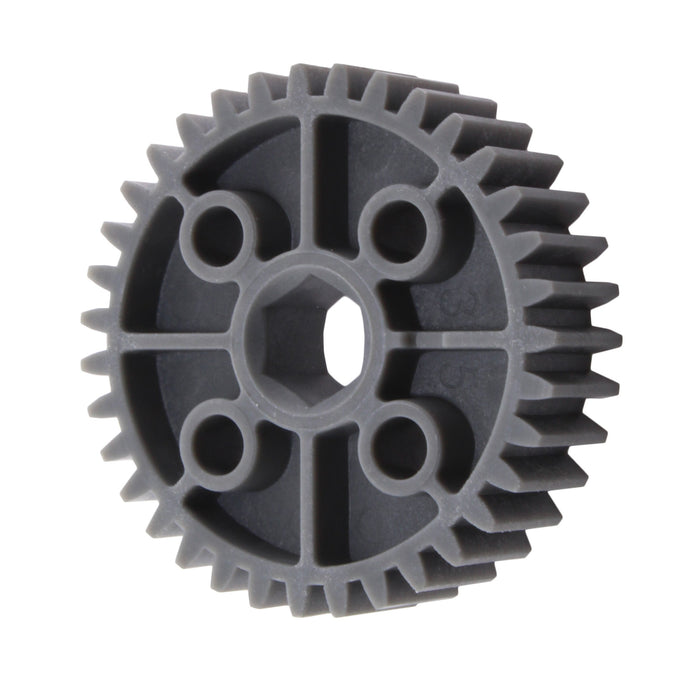

am-5020_35	35	0.375 Hex	1.85	1.750
am-5020_40	40	0.375 Hex	2.10	2.0
am-5020_45	45	0.375 Hex	2.35	2.25
am-5020_50	50	0.375 Hex	2.60	2.5

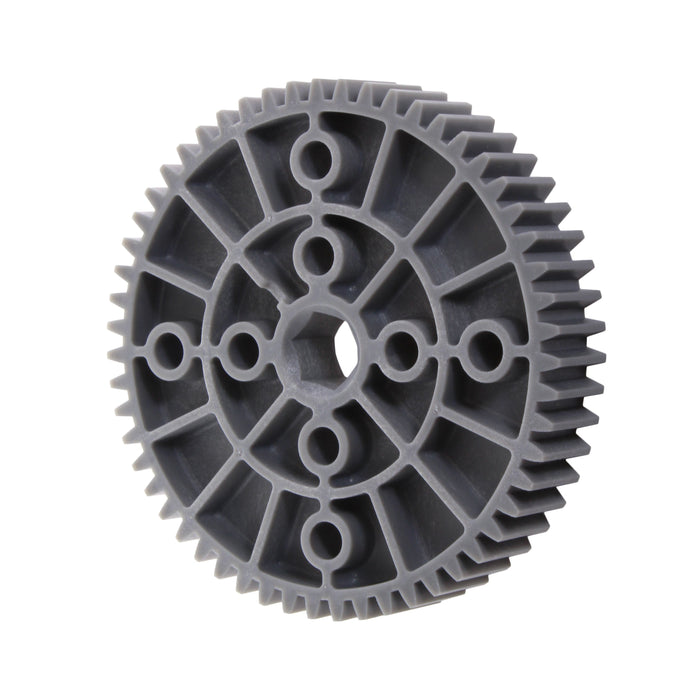

am-5020_55	55	0.375 Hex	2.85	2.75
am-5020_60	60	0.375 Hex	3.10	3.0

- Bolt Circle: 1 in. and 2 in. Bolt Circles
- Bore: 0.375 in. [9.5 mm] (3/8) Hex
- Diametral Pitch: 20
- Material: Fiber Reinforced Nylon
- Mounting Hole Size: 0.201 in.
- Pressure Angle: 14.5°
- Thickness: 0.5 in.
CAD Files
am-5020_55 55T 20DP 14.5PA 0.50 IN FW 0.375 Hex Gear.STEP
am-5020_45 45T 20DP 14.5PA 0.50 IN FW 0.375 Hex Gear.STEP
am-5020_35 35T 20DP 14.5PA 0.50 IN FW 0.375 Hex Gear.STEP
am-5020_25 25T 20DP 14.5PA 0.50 IN FW 0.375 Hex Gear.STEP
am-5020_60 60T 20DP 14.5PA 0.50 IN FW 0.375 Hex Gear.STEP
am-5020_50 50T 20DP 14.5PA 0.50 IN FW 0.375 Hex Gear.STEP
am-5020_40 40T 20DP 14.5PA 0.50 IN FW 0.375 Hex Gear.STEP
am-5020_30 30T 20DP 14.5PA 0.50 IN FW 0.375 Hex Gear.STEP
Layout Prints
am-5020_55 55T 20DP 14.5PA 0.50 IN FW 0.375 Hex Gear.pdf
am-5020_45 45T 20DP 14.5PA 0.50 IN FW 0.375 Hex Gear.pdf
am-5020_35 35T 20DP 14.5PA 0.50 IN FW 0.375 Hex Gear.pdf
am-5020_25 25T 20DP 14.5PA 0.50 IN FW 0.375 Hex Gear.pdf
am-5020_60 60T 20DP 14.5PA 0.50 in. FW 0.375 in. Hex Gear.pdf
am-5020_50 50T 20DP 14.5PA 0.50 in. FW 0.375 in. Hex Gear.pdf
am-5020_40 40T 20DP 14.5PA 0.50 in. FW 0.375 in. Hex Gear.pdf
am-5020_30 30T 20DP 14.5PA 0.50 in. FW 0.375 in. Hex Gear.pdf
