Robits Angle Gussets - am-Robits_Angles_1 - Image-1 - migrated

Robits Angle Gussets

by AndyMark

$1.60 - $2.20

$1.60

$1.60 - $2.20

$1.60 - $2.20

$1.60

These Gussets are used to connect components within the Robits platform.

Quantity

SKU

Description
Specifications
Documentation

Robits Angle Gussets are used to quickly and easily mount to Robits structure at a precise angle. Featuring the standard Robits hole pattern of a clearance hole for 10-32 screws every 0.5 in., these gussets are a versatile addition to your Robits collection.

Each Angle Gusset has a complimentary gusset, with their angle adding up to 180°. These pairs are often used together and are color-coded to match their partners.

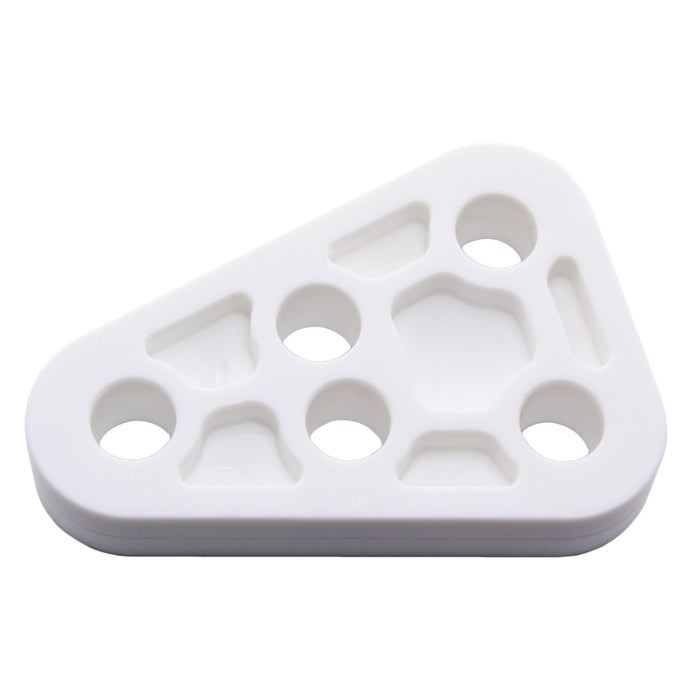

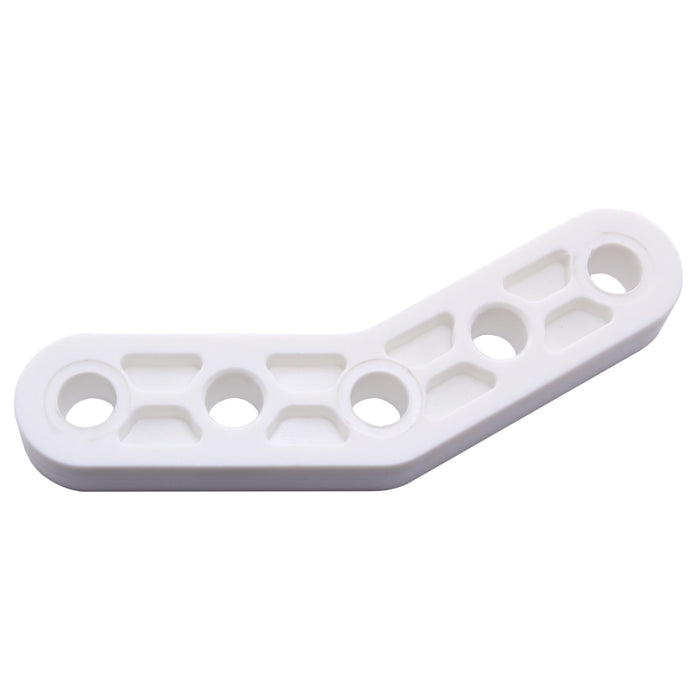

- 30° & 150° (White)

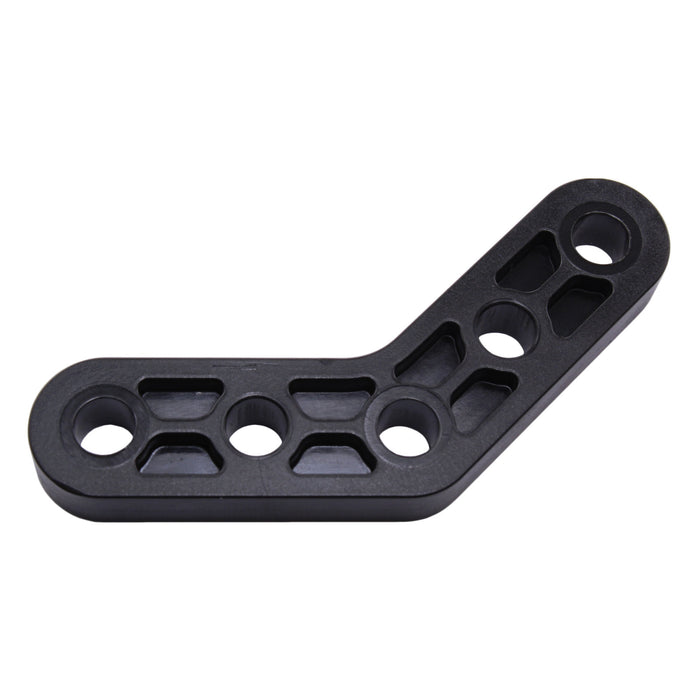

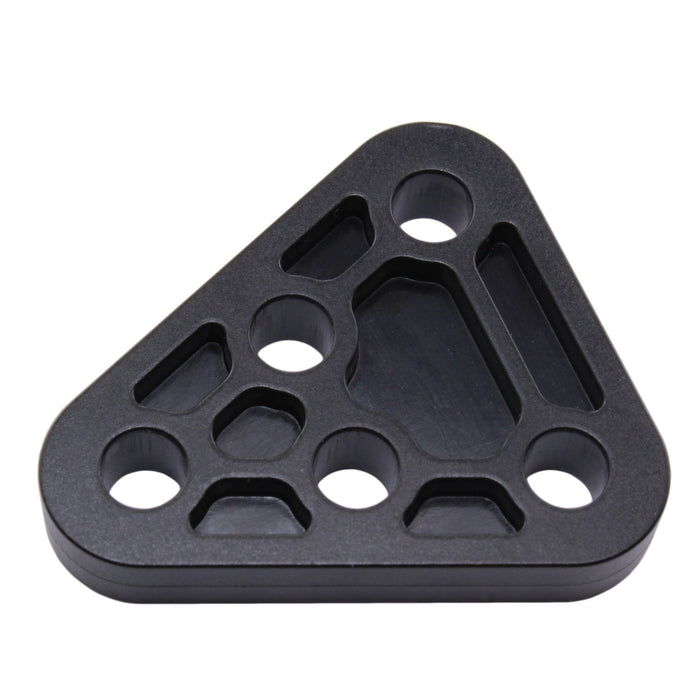

- 45° & 135° (Black)

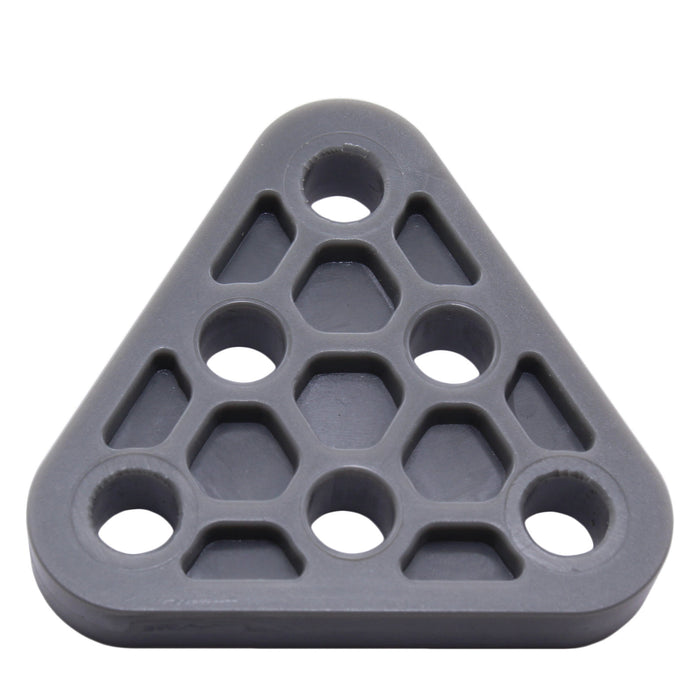

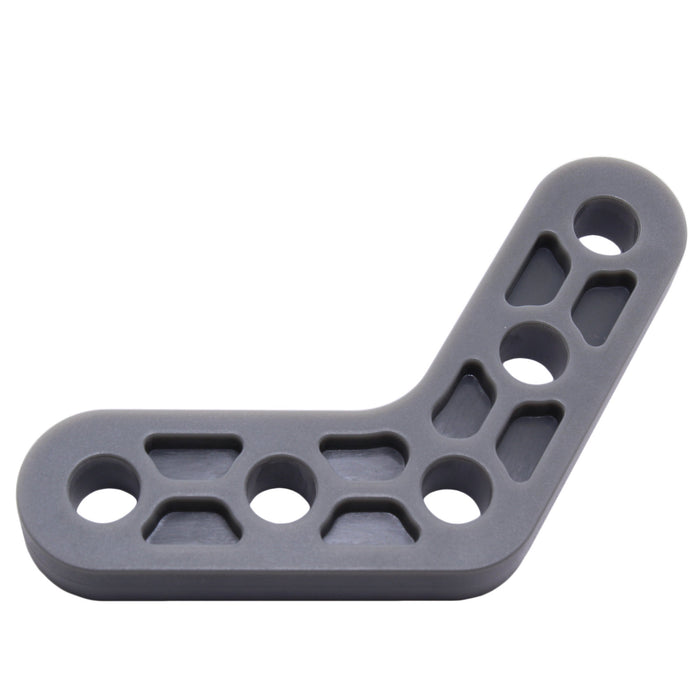

- 60° & 120° (Gray)
- Grid Hole Spacing: 0.50 in.
- Hole Size: 0.201 in.
- Material: Polycarbonate
- Thickness: 0.25 in.
CAD Files
am-5010_150 RoBits Angle Gusset (150°).STEP
am-5010_135 RoBits Angle Gusset (135°).STEP
am-5010_120 RoBits Angle Gusset (120°).STEP
am-5010_060 RoBits Angle Gusset (60°).STEP
am-5010_045 RoBits Angle Gusset (45°).STEP
am-5010_030 RoBits Angle Gusset (30°).STEP
Layout Prints
am-5010_150 RoBits Angle Gusset (150°).pdf
am-5010_135 RoBits Angle Gusset (135°).pdf
am-5010_120 RoBits Angle Gusset (120°).pdf
am-5010_060 RoBits Angle Gusset (60°).pdf
am-5010_045 RoBits Angle Gusset (45°).pdf
am-5010_030 RoBits Angle Gusset (30°).pdf
