Robits Compact Linear Slide

by AndyMark
$127.00 USD - $239.00 USD
$127.00 USD
$127.00 USD - $239.00 USD
$127.00 USD - $239.00 USD
$127.00 USD

The Compact Linear Slide system is a quick way to execute a controlled extension.

Choose Motor
Choose Stages
SKU
  • Description
  • What's in the Box?
  • Documentation

  • Specifically designed for FTC, (though not limited to FTC), this remarkable system is a quick way to execute a controlled extension. Each stage of the Compact Linear Slide is controlled by a pulley system that can be rigged to power both extension and retraction. This is the latest version of the AM Compact Linear slide, with Robits design ideals integrated. The inline stringing removes any tensioning spring requirement. The slide to pully holder attachment has been redesigned and improved.

    Options:

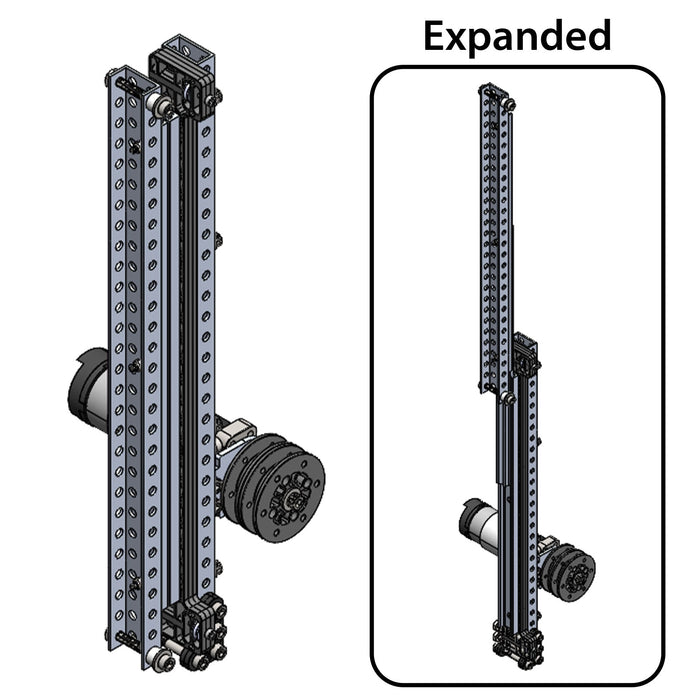

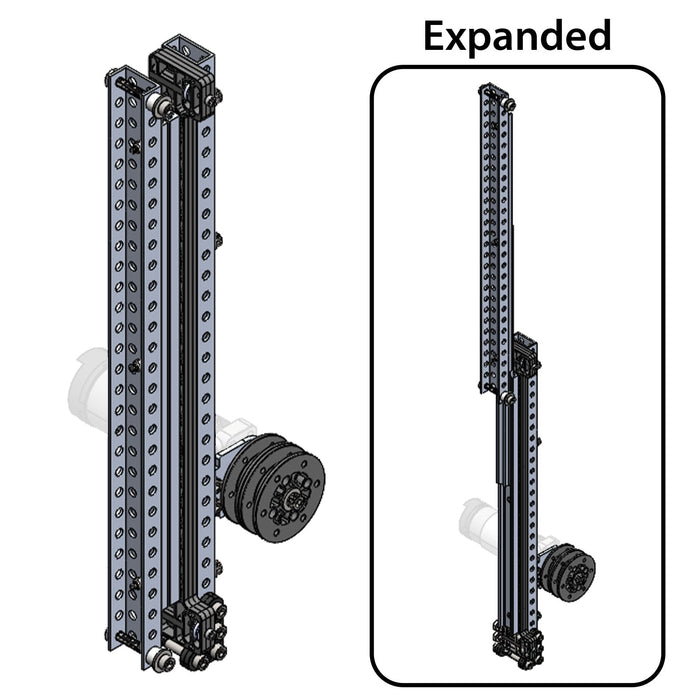

    • 1 Stage has 12.18 inches of stroke

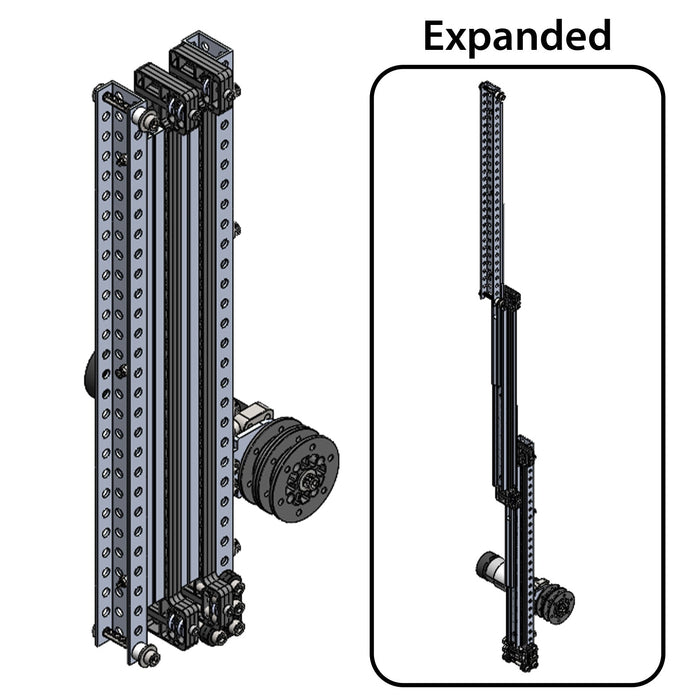

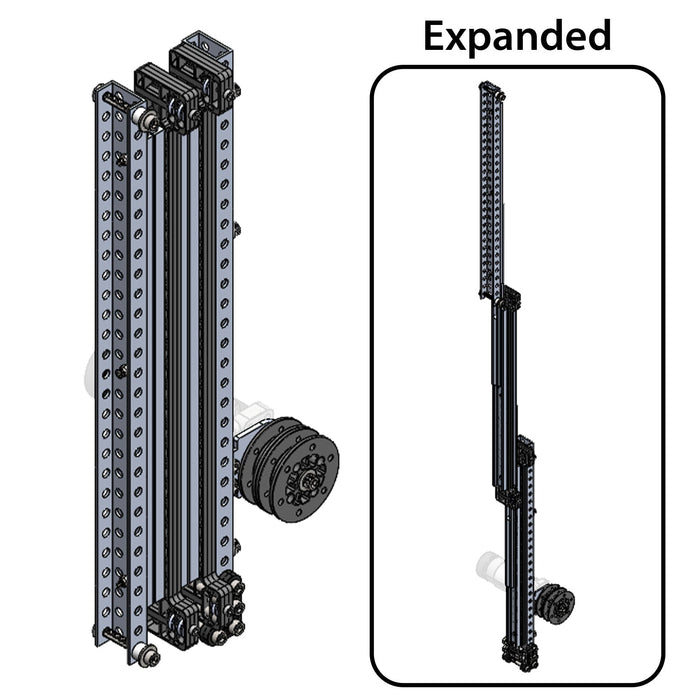

    • 2 Stage has 24.37 inches of stroke

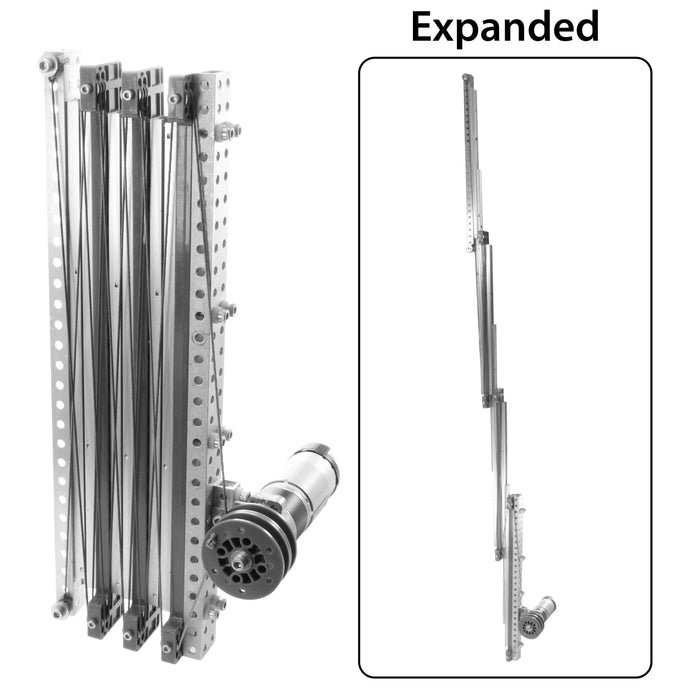

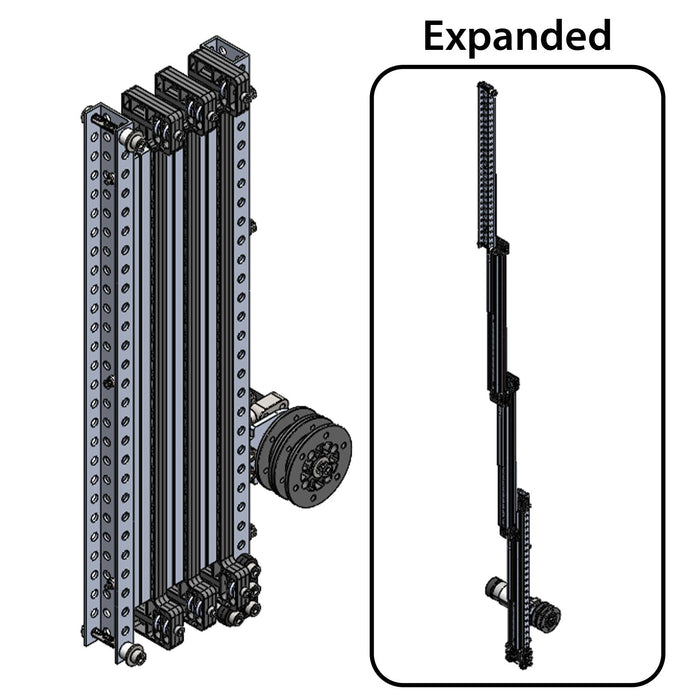

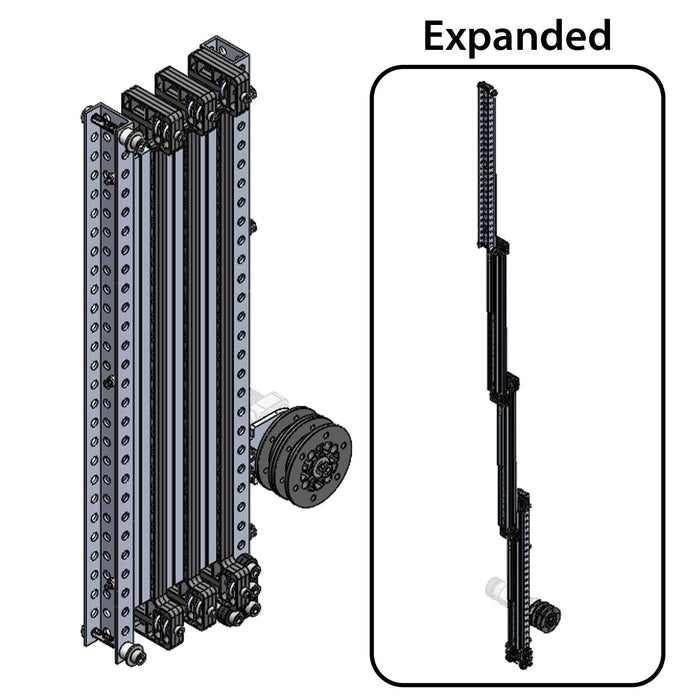

    • 3 Stage has 36.56 inches of stroke
    • Additional Stages
      • AndyMark officially supports a 3 stage system however teams may elect to add additional stages to increase reach.
      • Load limit of 25 lbs

    Suggested Rigging:

    • Continuous
      • One string per direction that connects through each stage
      • For more details, see the assembly guide and video

    Included Powering/Gearing:

    • NeveRest Hex 13.7 to 1:
      • Speedy, approximately 1 second per stage at full speed.
      • Enough torque to easily lift multiple stages with a manipulator and game pieces
    • No Motor Options have no motor included. They are compatible with NeveRest Hex Gearmotors.
      • For lower load applications, a lower ratio gearmotor like a 3.7 or 13.7 is ideal.
      • For higher load applications, a larger ratio gearmotor like a 19.2 or 50.9 is ideal.

    Further rigging assembly details can be seen in this video.


  • Included Items:

    Components Included in the base kit (am-4846b and am-4846b_NM):

    • 1 - Screw, SHCS 10-32 x 1/2" (am-1002)
    • 4 - Screw, SHCS 10-32 x 1-1/2" (am-1014)
    • 6 - M3 Nylock Nut, Steel, Zinc Plated (am-1023)
    • 3 - Washer, #10 Steel (am-1026)
    • 4 - Screw, SHCS 10-32 x 1-3/4" (am-1048)
    • 10 - 10-32 x 1 in. Socket Head Cap Screw (am-1056)
    • 18 - 10-32 Nylock Jam Nut (am-1063)
    • 4 - M3-0.5 x 8mm Socket Head Cap Screw with Thread Patch (am-1500)
    • 2 - M3-0.5 x 35 mm Socket Head Cap Screw (am-1671)
    • 2 - 0.194 in. ID 0.375 in. OD 0.250 in. Long Nylon Spacer (am-1700)
    • 4 - M3-0.5 x 8mm Flat Head Cap Screw (am-1723)
    • 2 - M3-0.5 x 5 mm Zinc Flat Head Cap Screw with Nylon Patch (am-1724)
    • 11 - Spacer, 0.375 OD x 0.194 ID x 0.125 Long Nylon (am-1732)
    • 2 - M3 Female Threaded 9mm Long Hex Standoff (am-1733)
    • 1 - 0.430 in. ID 0.500 in. OD 0.125 in. Long Aluminum Spacer (am-1742)
    • 1 - 1.4 mm Power String 100' Spool (am-3159)
    • 2 - 3 mm ID 12 mm OD Pully Bearing (am-4836)
    • 1 - SAR330 Aluminum Slide (am-4837)
    • 1 - 2 in. x 0.5 in. x 0.5 in. Robits Tube (am-5001-0200)
    • 2 - Robits 2x3 L Gusset (am-5004_2x3)
    • 1 - ROBITS 1 x 1/2 x 14.0" Channel (am-5009-1400)
    • 1 - RoBits Motor Mount (am-5012)
    • 1 - 14 in. x 1 in. x 0.5 in. Robits Tube (am-5026-1400)
    • 1 - 14 in. Pulley Mount (am-5035)
    • 2 - Robits Spool, Large (am-5036)

    Each Additional Stage Includes:

    • 3 - M3-0.5 Nylock Nut (am-1023)
    • 2 - Screw, SHCS, M3-0.5 x 35 mm, Zinc Plated (am-1671)
    • 1 - Screw, Flat Head M3-0.5 x 8 mm Steel (am-1723)
    • 4 - Screw, Flat Head M3-0.5 x 5 mm Steel Patched (am-1724)
    • 2 - M3 x 9mm Long x 6mm Hex Standoff (am-1733)
    • 4 - 3 mm ID 12 mm OD Pully Bearing (am-4836)
    • 1 - SAR330 Aluminum Slide (am-4837)
    • 1 - 14IN Pulley Mount (am-5035)

    Motor Included Options Include:

    • 1 - 12 in. JST-VH 2-pin Motor Extension Cable (am-5198-1200)
    • 1 - Gearmotor, NeveRest Hex, 13.7:1 with Encoder, 1" Shaft (am-5441)

  • Guides

    am-4846b Compact Linear Slide Assembly Guide.pdf

    CAD Files

    am-4851b Linear Slide 3 Stage Assembly.STEP
    am-4850b Linear Slide 2 Stage Assembly.STEP
    am-4846b Linear Slide 1 Stage Assembly.STEP

    Layout Prints

    am-4851b Linear Slide 3 Stage Assembly.pdf
    am-4850b Linear Slide 2 Stage Assembly.pdf
    am-4846b Linear Slide 1 Stage Assembly.pdf
