Designed with accessibility in mind, Robits is the AndyMark building system for FIRST Tech Challenge teams.
SKU am-5000
  • Description
  • Documentation
  • Curriculum Now Available! Six lessons of curriculum using the Robits Core Kit are now available to download.

    Robits is a new AndyMark building system for FIRST Tech Challenge teams, designed with accessibility in mind. Robits encourages rapid iteration and promotes development of critical thinking and problem solving.

    The Robits system is designed to reduce complexity and enable robust builds. Parts align to a common 1/2 in. grid simplifying construction and allowing alignment of both structure and motion components. Optimized resolution of components simplifies the system while allowing teams to always have the parts they need to complete a build.

    Robits is an excellent cross-program system utilizing many common features and components FIRST Robotics Competition teams have grown to prefer.

    The Robits INTO THE DEEP℠ Robot was designed to be built only using the Robits Core Kit, just add a control system! It can reliably acquire game pieces, score Samples and Specimens, and ascend. Its architecture has plenty of flexibility to iterate and tune the design to each team's needs.

    The design of this robot can be found in the files hosted at the bottom of this page.

    This kit does not include any control system components (battery, charger, switch, controller, etc).

    **Note**

    Teams should note the maximum extension rules in the Competition Manual. This robot has the potential to exceed the horizontal limits during gameplay. Be sure to investigate software limits (similar to example code posted below) to keep your robot in compliance.

    To learn more, watch this video: Introducing Robits with Allison Kneisler

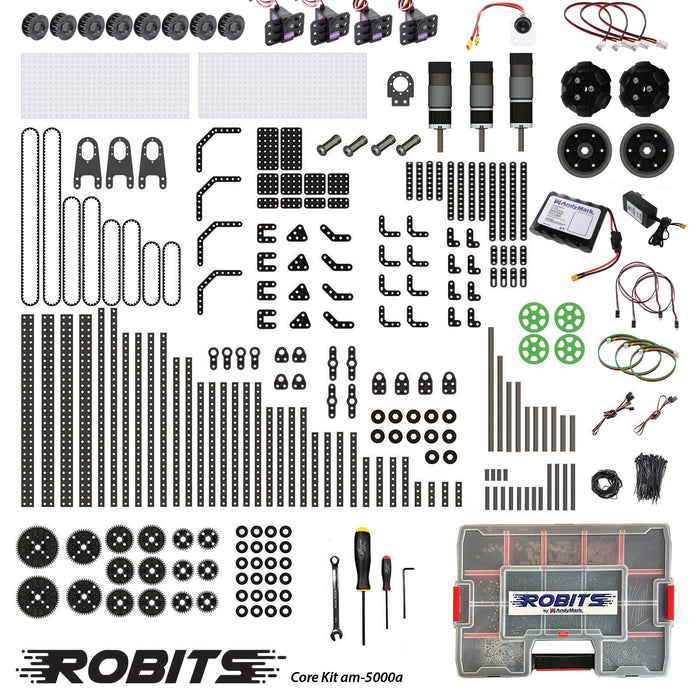

    Included Items:

    Electronics:

    • 1 - NeveRest Orbital - 3.7 (am-3461b)
    • 2 - NeveRest Orbital - 19.2 (am-3637b)
    • 1 - NeveRest Orbital - 50.9 (am-4609b)

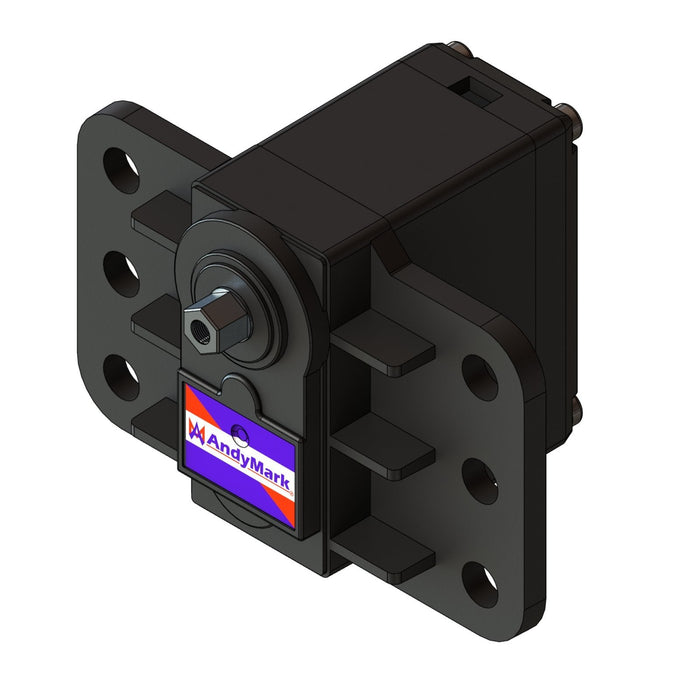

    • 2 - Programmable Torque Servo (am-4954)
    • 2 - 24 in. PWM Cable (am-0694a)
    • 1 - 36 in. PWM Cable (am-0695a)

    Structure:

    • 2 - 15.5×6×1/32 Perforated PC (am-4964)

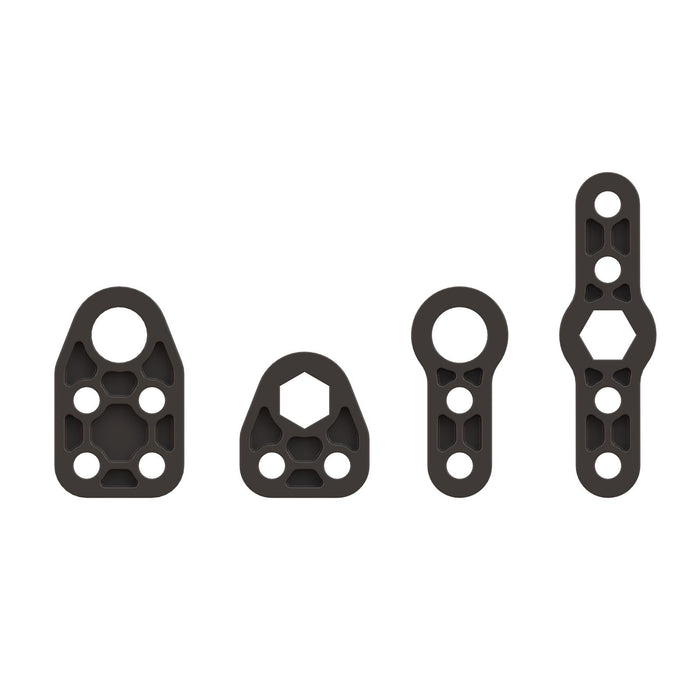

    • 3 - Robits 80-100T Motor Mount (am-5017)
    • 2 - Robits Motor Mount (Side 2 Hole) (am-5012)
    • 4 - Robits End Bushing Carrier (am-5014)
    • 8 - Robits Side Bushing Carrier (am-5013)
    • 4 - Robits Side Shaft Carrier (am-5015)
    • 4 - Robits Double End Shaft Carrier (am-5016)

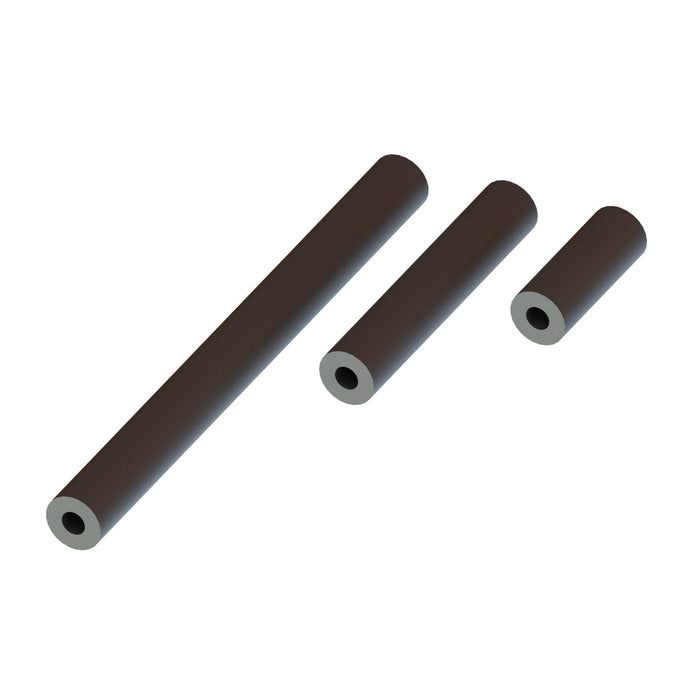

    • 4 - 10-32 Female Threaded 1 in. Long 0.375 in. Round Standoff (am-1701)
    • 8 - 10-32 Female Threaded 2 in. Long 0.375 in. Round Standoff (am-1702)
    • 4 - 10-32 Female Threaded 4 in. Long 0.375 in. Round Standoff (am-1704)

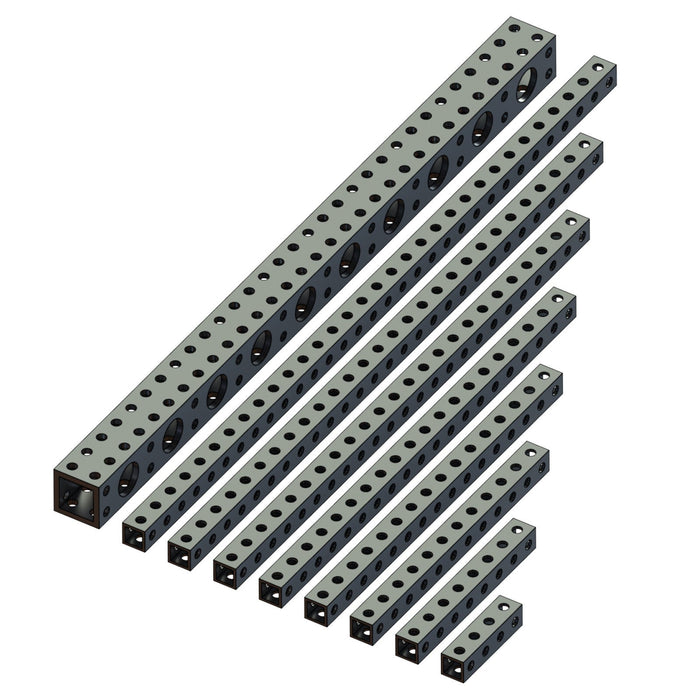

    • 4 - Robits 0.5×0.5×2.0 Tube (am-5001-0200)
    • 4 - Robits 0.5×0.5×4.0 Tube (am-5001-0400)
    • 4 - Robits 0.5×0.5×6.0 Tube (am-5001-0600)
    • 4 - Robits 0.5×0.5×8.0 Tube (am-5001-0800)
    • 6 - Robits 0.5×0.5×10.0 Tube (am-5001-1000)
    • 4 - Robits 0.5×0.5×12.0 Tube (am-5001-1200)
    • 4 - Robits 0.5×0.5×14.0 Tube (am-5001-1400)
    • 2 - Robits 0.5×0.5×16.0 Tube (am-5001-1600)
    • 4 - Robits 1.0×1.0×15.5 Tube (am-5002-1550)

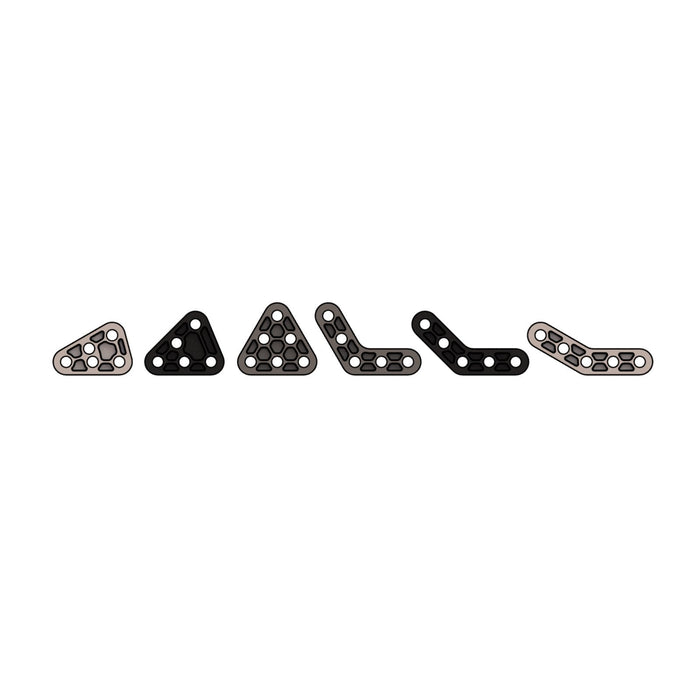

    • 4 - Robits Angle Gusset (45°) (am-5010_045)
    • 4 - Robits Angle Gusset (135°) (am-5010_135)

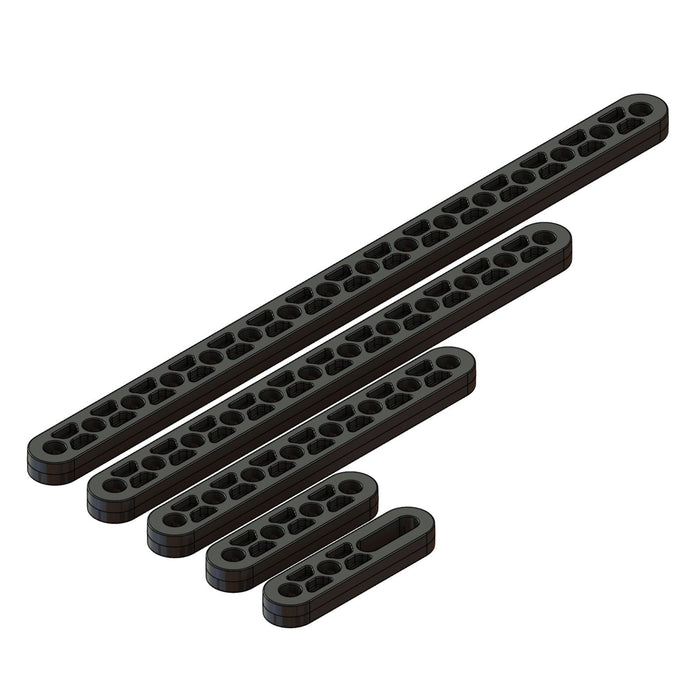

    • 4 - Robits Slotted Beam (am-5011_slot)
    • 4 - Robits 1×4 Beam (am-5011_1x4)
    • 4 - Robits 1×8 Beam (am-5011_1x8)
    • 4 - Robits 1×12 Beam (am-5011_1x12)
    • 4 - Robits 1×16 Beam (am-5011_1x16)
    • 8 - Robits 2×3 L Gusset (am-5004_2x3)
    • 8 - Robits 3×3 Corner Gusset (am-5005_3x3)
    • 4 - Robits 5×5 Corner Gusset (am-5005_5x5)

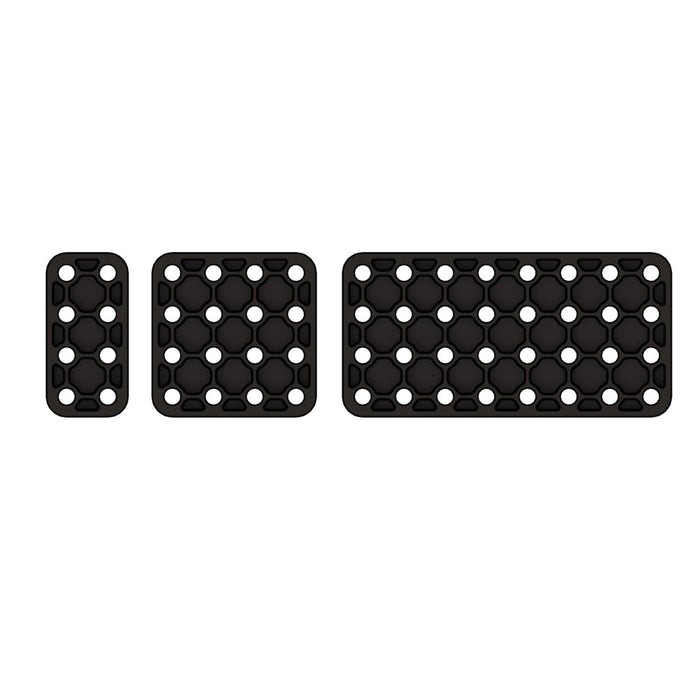

    • 4 - Robits 2×4 Plate (am-5006_2x4)
    • 4 - Robits 4×4 Plate (am-5006_4x4)
    • 2 - Robits 4×8 Plate (am-5006_4x8)
    • 4 - Robits 3x3 U Gusset (am-5008_3x3)

    Motion:

    • 24 - 14 Tooth 0.375IN Hex Bore HTD Pulley Half (am-4960_half)
    • 24 - Robits Motion Bushing for 375IN Hex (am-5021)

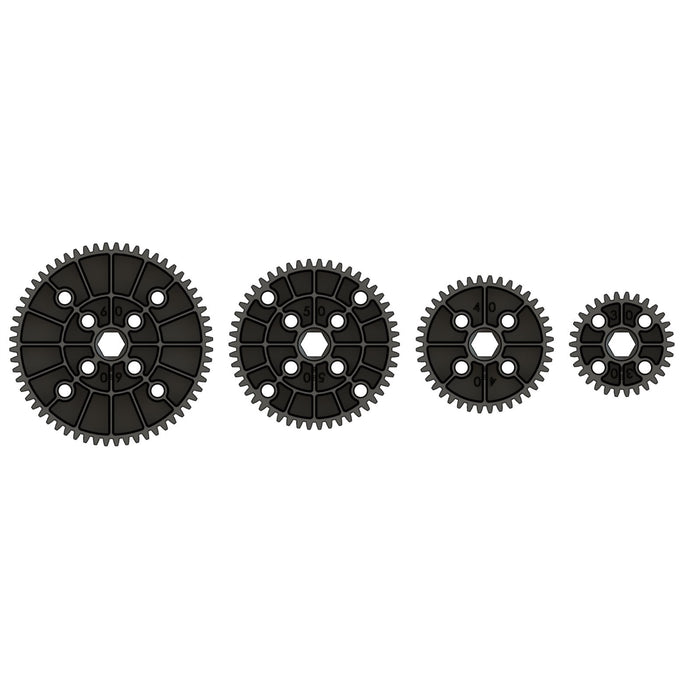

    • 6 - 30 Tooth 20DP 0.375 in. Hex Bore Plastic Gear (am-5020_30)
    • 6 - 40 Tooth 20DP 0.375 in. Hex Bore Plastic Gear (am-5020_40)
    • 2 - 50 Tooth 20DP 0.375 in. Hex Bore Plastic Gear (am-5020_50)
    • 2 - 60 Tooth 20DP 0.375 in. Hex Bore Plastic Gear (am-5020_60)
    • 2 - 225-5m-09 Belt (45 Tooth) (am-3273)
    • 2 - 300-5m-09 Belt (60 Tooth) (am-4902)
    • 2 - 375-5m-09 Belt (75 Tooth) (am-4958)
    • 2 - 605-5m-09 Belt (121 Tooth) (am-4959)

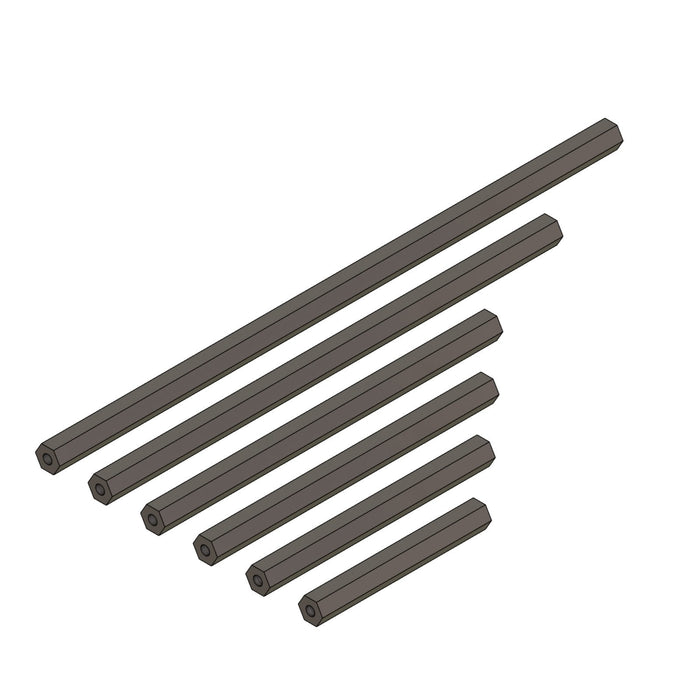

    • 2 - Robits 0.375 in. Hex Shaft 3 in. Long (am-5003-0300)
    • 8 - Robits 0.375 in. Hex Shaft 4 in. Long (am-5003-0400)
    • 2 - Robits 0.375 in. Hex Shaft 6 in. Long (am-5003-0600)
    • 1 - Robits 0.375 in. Hex Shaft 8 in. Long (am-5003-0800)
    • 1 - Robits 0.375 in. Hex Shaft 10 in. Long (am-5003-1000)
    • 4 - 6 mm D to 375IN Hex-Shaft Adapter (am-3444)
    • 2 - 5 mm Hex to 375IN Hex Shaft Adapter (am-4957)
    • 4 - 2 in. Compliant Wheels (Green) (am-3571_green)
    • 2 - 3 in Omni Wheel (Single) (am-4967)
    • 2 - 3 in. Stealth Wheel (Gray) (am-4718_gray)

    Hardware:

    • 24 - Spacer, 0.375 OD x 0.194 ID x 0.25 Long Nylon (am-1700)
    • 24 - Spacer, 0.375 OD x 0.194 ID x 0.50 Long Nylon (am-1697)
    • 24 - Spacer, 0.375 OD x 0.194 ID x 0.75 Long Nylon (am-4107)
    • 24 - Spacer, 0.375 OD x 0.194 ID x 1.00 Long Nylon (am-1696)
    • 24 - Spacer, 0.430 ID x 0.500 OD x 0.250 Long Aluminum (am-1698)
    • 24 - Spacer, 0.430 ID x 0.500 OD x 0.500 Long Aluminum (am-1699)
    • 48 - Screw, SHCS, 10-32 x 0500 (am-1002)
    • 48 - Screw, SHCS, 10-32 x 0750 (am-1047)
    • 48 - Screw, SHCS, 10-32 x 1000 (am-1056)
    • 72 - Screw, SHCS, 10-32 x 1250 (am-1041)
    • 48 - Screw, SHCS, 10-32 x 1500 (am-1014)
    • 24 - Screw, SHCS, 10-32 x 1750 (am-1048)
    • 24 - Screw, SHCS, 10-32 x 2000 (am-1049)
    • 12 - Screw, SHCS, 10-32 x 2250 (am-1156)
    • 100 - 10-32 Nylock Jam Nut (am-1063)
    • 100 - #10 Steel Washer (am-1026)
    • 24 - M3-0.5 x 8 mm Socket Head Cap Screw with Thread Patch (am-1500)
    • 100 - Cable Ties 4 in. (am-1589)
    • 50 - #33 Rubber Bands (am-5024_black)
    • 1 - Power String, 1.4 MM, 100' Spool (am-3159)
    • 1 - Robits Ruler (am-5025)
    • 1 - Organizer Tote with Removable Dividers (am-4972)

    Tools:

    • 1 - Hex Driver, Ball End 3/32 in. with Handle (am-3173)
    • 1 - Hex Driver, Ball End 5/32 in. with Handle (am-2751)
    • 1 - Hex Driver, Ball End 2.5 mm with Handle (am-3724)
    • 1 - Allen Wrench, 2.5 mm Hex L-Shaped (am-1288)
    • 1 - 3/8 Combination Wrench (am-4961)
    ----------------------------------------------------------------------------------------------------
  • CAD Files

    am-5000 Robits Core Kit.zip
    am-5000 ITD Roller Claw Example.STEP
    am-5000 Robits INTO THE DEEP Robot.STEP

    Example Code

    am-5000 Blocks_Into_The_Deep_Starterbot_Encoder_SWLimits.blk
    am-5000 Example Code.zip
    am-5000 Into_The_Deep_Starterbot_Encoder_SWLimits.java

    Guides

    am-5000 Robits Curriculum.zip
    am-5000 Robits INTO THE DEEP Robot Assembly Guide.pdf

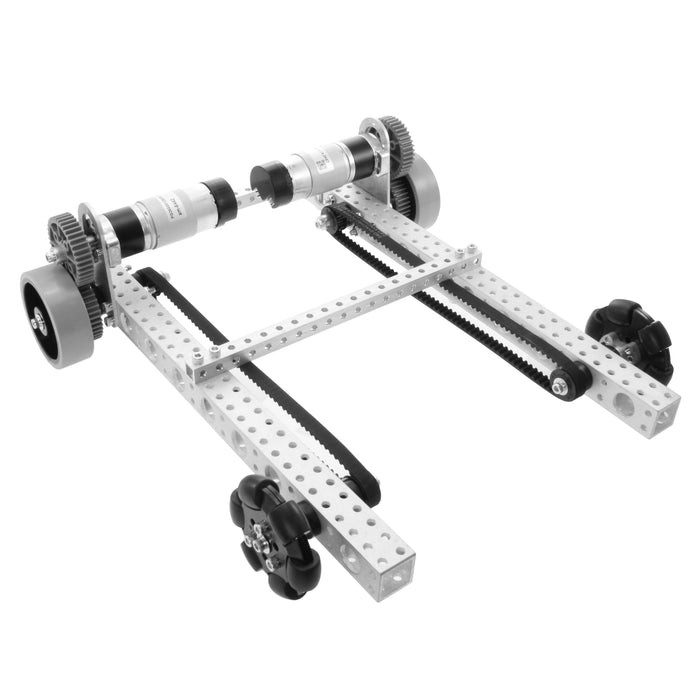

    am-5000 Robits Starter Drive Base Assembly Guide_9_7_23.pdf
    am-5000 Robits Starter Chassis Guide.pdf

    Additional Files

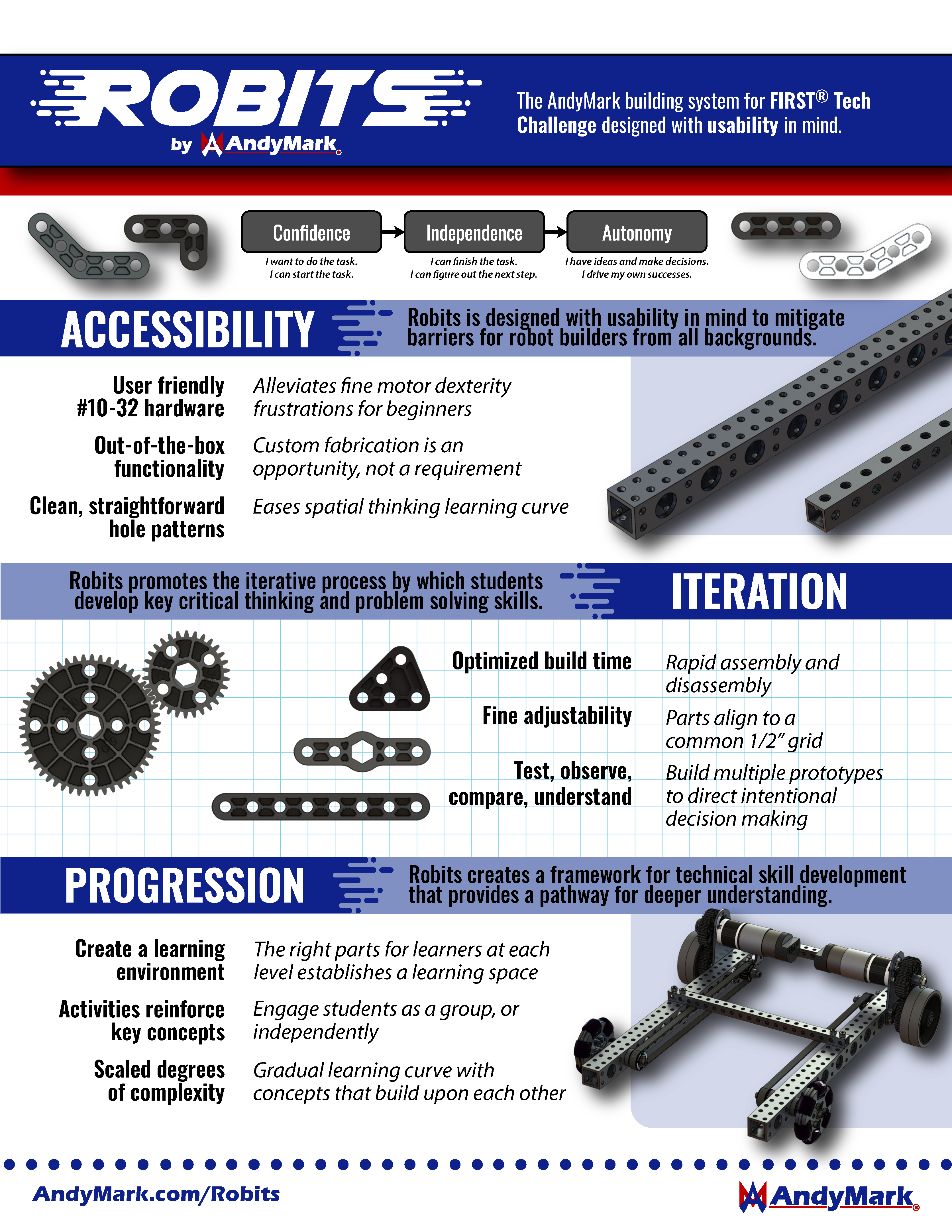

    am-5000 Robits_web_flyer.png
