The Robits Intermediate Mobility Expansion is a great way to increase your Robits Core Kit by incorporating mecanum wheels. This expansion kit allows users to build a mecanum drivetrain in one of three major configurations. This kit utilizes the 4 in. BB mecanum wheel, our core mecanum wheel with ball bearings for ultra smooth rotation. For motion transfer, our ⅜ inch Hex Pass Through Bevel Box help teams move their motors out of the way for other mechanisms. New to this revision of the kit is everything needed to create a full rolling chassis!
Configurations:

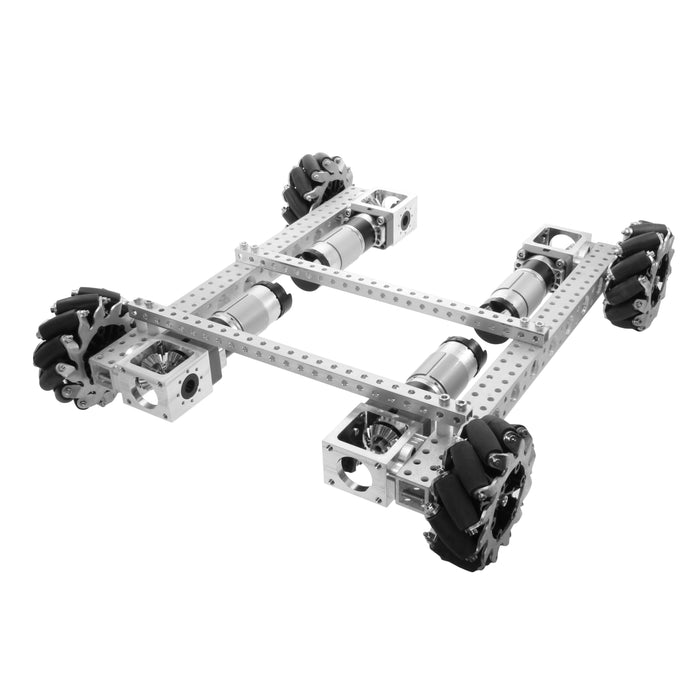

Horizontal Motors - This configuration mounts the motors horizontally on the inside of the chassis. This can be useful to conserve space above your drivetrain for various components and mechanisms. This configuration can limit the placement of your motors and wheels from front to back due to their length in that direction.

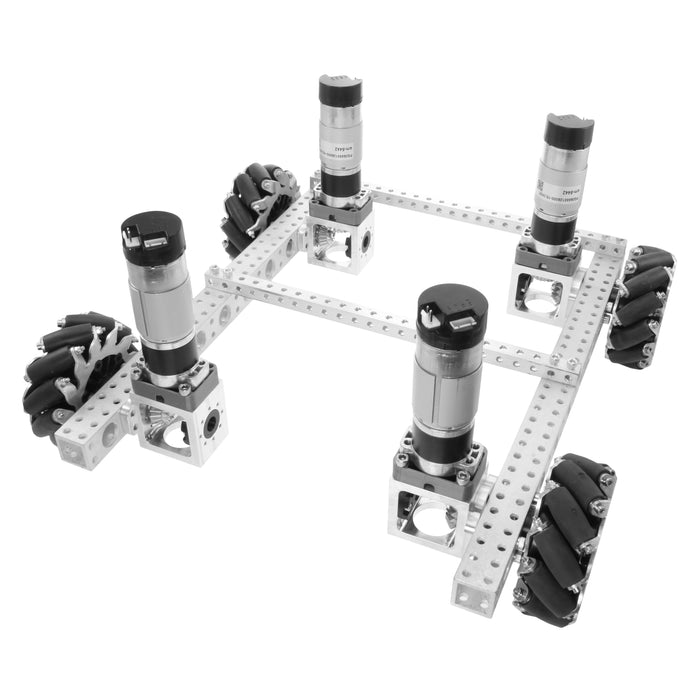

Vertical Motors - This configuration mounts the motors vertically on the inside of the chassis. This can be useful to allow greater flexibility in the placement of your motors and wheels from front to back and opens up space in the middle of your robot.
Motors Between Wheels - This configuration mounts the motors between the wheels and utilizes belts to provide power between them. This option can provide a large opening in the chassis for mechanisms and components.
-

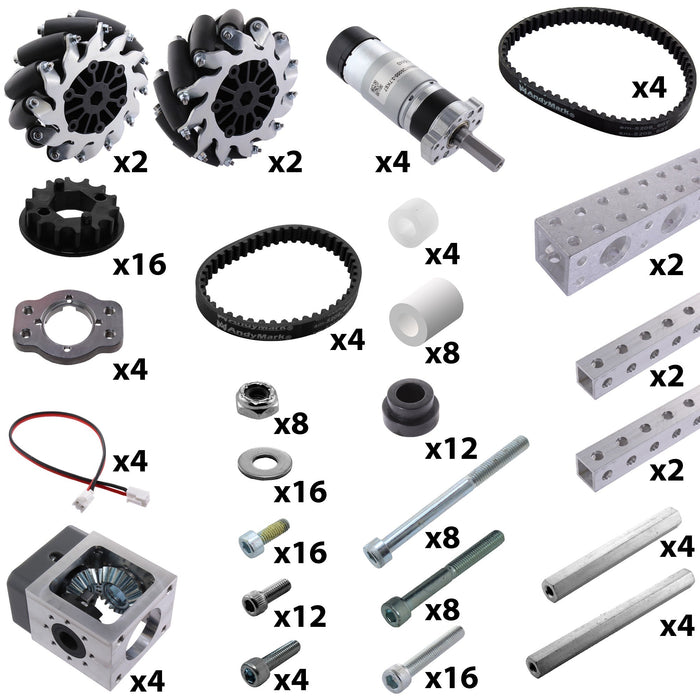

Included Items:
- 12 - Screw, SHCS 10-32 x 1/2" (am-1002)
- 48 - M3 Nylock Nut, Steel, Zinc Plated (am-1023)
- 16 - Washer, #10 Steel (am-1026)
- 16 - 10-32 x 1.25 in. SHCS (am-1041)
- 20 - 10-32 x 3/4 in. Long Socket Head Cap Screw (am-1047)
- 8 - Screw, SHCS 10-32 x 1-3/4" (am-1048)
- 16 - 10-32 x 1 in. Socket Head Cap Screw (am-1056)
- 8 - 10-32 Nylock Jam Nut (am-1063)
- 8 - 10-32 x 2.250 in. Socket Head Cap Screw (am-1156)
- 24 - M3-0.5 x 8mm Socket Head Cap Screw with Thread Patch (am-1500)
- 48 - M3-0.5 x 45 mm Socket Head Cap Screw (am-1659)
- 8 - 0.194 in. ID 0.375 in. OD 0.500 in. Long Nylon Spacer (am-1697)
- 4 - 0.430 in. ID 0.500 in. OD 0.250 in. Long Aluminum Spacer (am-1698)
- 20 - 0.194 in. ID 0.375 in. OD 0.250 in. Long Nylon Spacer (am-1700)
- 16 - M3-0.5 x 12 mm Socket Head Cap Screw with Nylon Patch (am-1706)
- 48 - 4 in. BB Mecanum Roller (am-3680)
- 96 - Bearing, 0.190" (3/16") Bore 3/8" od Extended Inner Race R166ZZEE (am-3681)
- 4 - 0.375 in Hex ID 7/8 in. OD Sealed Flanged Bearing (FR62RS-Hex) (am-4489)
- 4 - 4 in. BB Mecanum Wheel Left Plate (am-4734L_plate)
- 4 - 4 in. BB Mecanum Wheel Right Plate (am-4734R_plate)
- 4 - 4 in. BB Mecanum Wheel Hub, 0.375 in. Hex Bore (am-4735_hub)
- 48 - BB Mecanum Roller Inner Axle Brass Tube (am-4764)
- 8 - 20 Tooth 1.5 Module 3/8 in. Hex Bore Steel Bevel Gear (am-4869)
- 16 - Pulley Half, 14T HTD 375 Hex Bore, Black (am-4960_half)
- 2 - 12 in. x 0.5 in. x 0.5 in. Robits Tube (am-5001-1200)
- 2 - 14 in. x 0.5 in. x 0.5 in. Robits Tube (am-5001-1400)
- 2 - 15.5 in. x 1 in. x 1 in. Robits Tube (am-5002-1550)
- 4 - 3 in. Robits Hex Shaft (am-5003-0300)
- 4 - 4 in. Robits Hex Shaft (am-5003-0400)
- 12 - 0.425 in. ID 0.985 in. OD 0.5 in. Long Robits Flange Bushing for 0.375 in. Hex Shaft (am-5021)
- 4 - 12 in. JST-VH 2-pin Motor Extension Cable (am-5198-1200)
- 4 - Belt, Timing, HTD, 5mm Pitch, 9mm Wide, 45T, 225-5M-9 (am-5209_45T)
- 4 - Belt, Timing, HTD, 5mm Pitch, 9mm Wide, 60T, 300-5M-9 (am-5209_60T)
- 4 - Gearmotor, NeveRest Hex, 19.2:1 with Encoder, 1" Shaft (am-5442)
- 4 - NeveRest Orbital Adapter Mount (am-5462)
- 4 - Bushing, 0.430 ID 21mm OD NeveRest Pattern Flanged (am-5534)
- 4 - Bevel Housing, 375H Pass Through (am-5535)
- 4 - 15 mm ID 21 mm OD Shielded Flanged Bearing (F6702ZZ) (am-5536)
- 4 - NeveRest Spacer Mount (am-5537)
CAD Files
am-5159 Robits Intermediate Mobility.zip
am-5159 Robits Mecanum Chassis (80-100T).STEP
am-5159 Robits Mecanum Chassis (Over Tube).STEP
am-5159 Robits Mecanum Chassis (Through Tube).STEP
