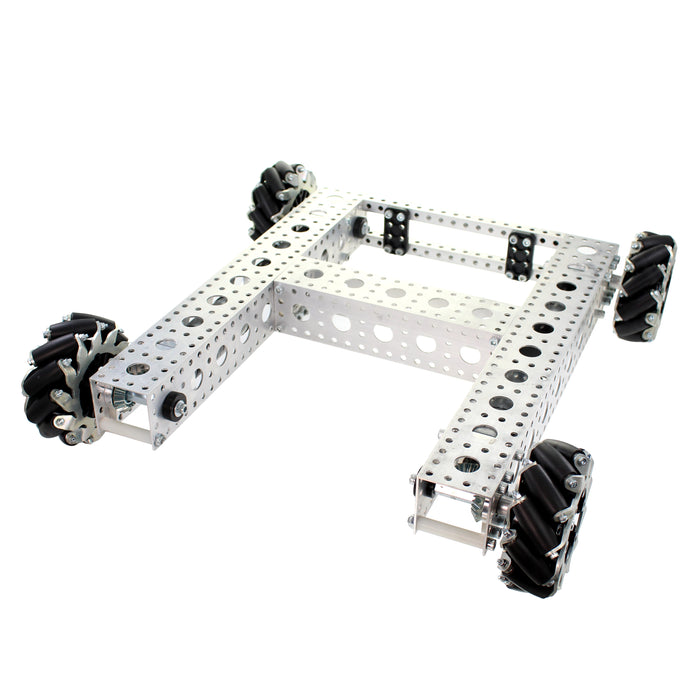

Robits Mecanum Channel Chassis

Robits Mecanum Channel Chassis

by AndyMark
Sold out
$319.00 USD - $585.00 USD
$319.00 USD - $585.00 USD
$319.00 USD - $585.00 USD
$319.00 USD
Choose Wheel Option
Choose Motor Option
SKU
  • Description
  • What's in the Box?

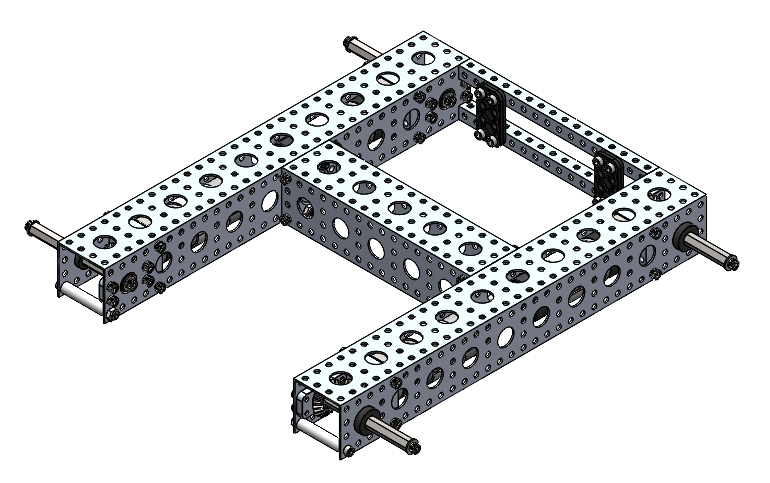

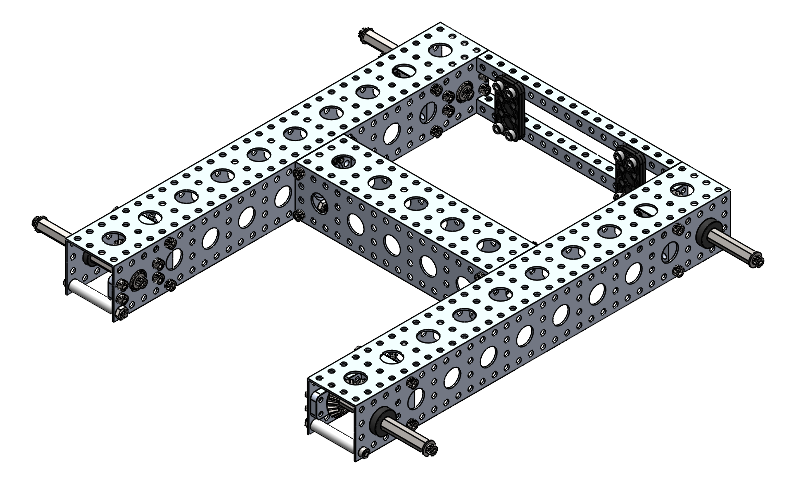

  • The Robits Mecanum Channel Chassis is our newest drive system and features our 2.0 inch x 2.0 inch Robits Channel. This system allows the mounting of the motors and other motion components inside the structure for a more compact package. The large frame opening facilitates space for mechanisms and gamepieces to pass through the robot.

    There are few configurations available but if you are not sure what to get, we recommend am-5828_4B19. This version balances wheel speed and ground clearance.

    Wheels

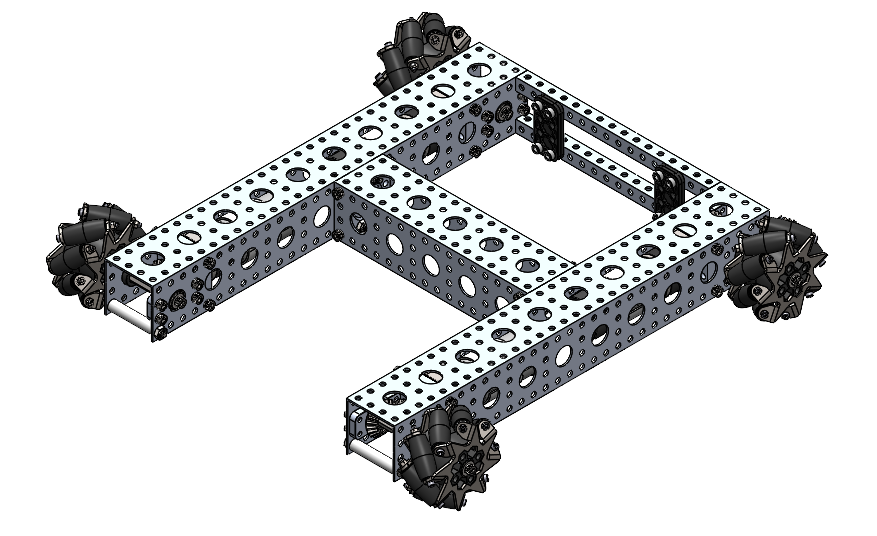

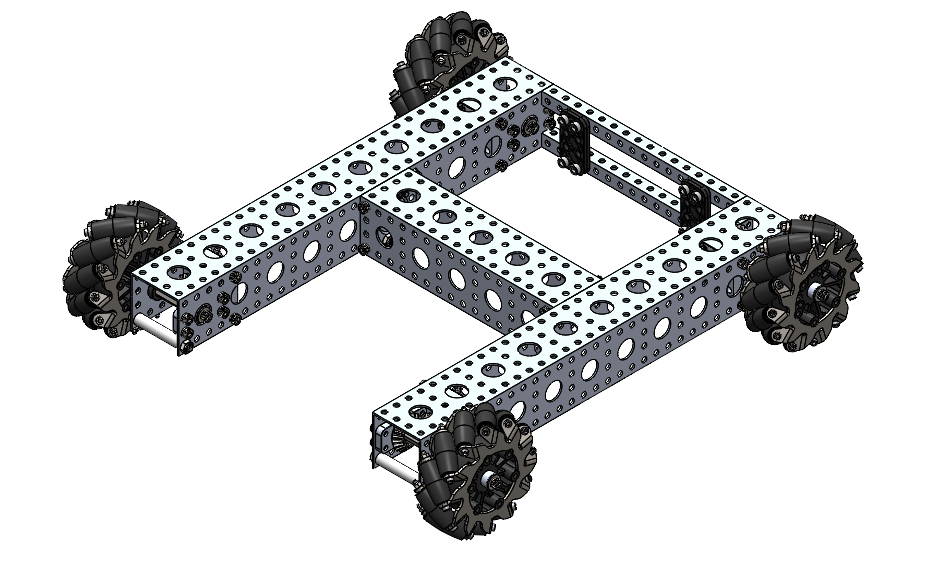

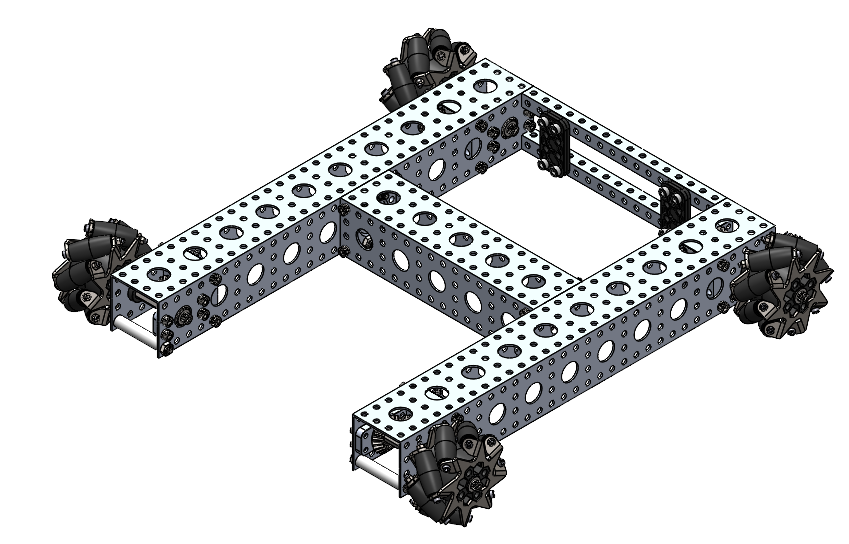

    • 3 or 4 in. BB Mecanum Wheels
    • These wheels are our thinnest mecanum wheels
    • The ball bearings inside of the rollers make for a smoother ride

    Motors

    • NeveRest Hex 13.7:1
      • For a faster drive train, the 14:1 output of these motors is preferred
      • We recommend this option when paired with a 3 inch wheel
    • NeveRest Hex 19.2:1
      • These motors can handle moving around more weight at a more consistent speed
      • We recommend this option when paired with a 4 inch wheel

  • Included in All:

    • 2 - 15.5 in. Long Robits Channel (am-5047-1550)
    • 6 - 2 x 2 in. Robits Channel Mount (am-5049)
    • 4 - Bevel Bearing Carrier (am-5048)
    • 8 - 20 Tooth 1.5 Module 3/8 in. Hex Bore Steel Bevel Gear (am-4869)
    • 4 - 15 mm ID 21 mm OD Shielded Flanged Bearing (F6702ZZ) (am-5536)
    • 4 - NeveRest Hex Bevel Spacer (am-1766)
    • 32 - 10-32 x 0.75 in. Socket Head Cap Screw (am-1047)
    • 12 - 0.430 in. ID 0.500 in. OD 0.250 in. Long Aluminum Spacer (am-1698)
    • 4 - 0.430 in. ID 0.500 in. OD 0.500 in. Long Aluminum Spacer (am-1699)
    • 34 - 10-32 x 0.5 in. Socket Head Cap Screw (am-1002)
    • 4 - 0.425 in. ID 0.688 in. OD Robits Flanged Bushing for 0.375 in. Hex Shaft (am-5021)
    • 4 - 4 in. Robits Hex Shaft (am-5003-0400)
    • 8 - #10 Flat Washer (am-1026)
    • 16 - 10-32 x 0.25 in. Socket Head Cap Screw with Nylon Thread Lock Patch (am-1771)
    • 1 - 8 in. Long Robits Channel (am-5047-0800)
    • 10 - 10-32 Nylock Jam Nut (am-1063)
    • 2 - 8 in. x 0.5 in. x 0.5 in. Robits Tube (am-5001-0800)
    • 4 - ROBITS 1x4 Tube Plug (am-5738_1x4)
    • 2 - 2 x 4 Robits Plate Gusset (am-5006_2x4)
    • 4 - 0.194 in. ID 0.375 in. OD 1.875 in. Long Nylon Spacer (am-1769)
    • 2 - 10-32 x 2.25 in. Socket Head Cap Screw (am-1156)

    With 3 in. BB Mecanum Wheels:

    • 2 - Left 3 in. BB Mecanum Wheel (am-5502L)
    • 2 - Right 3 in. BB Mecanum Wheel (am-5502R)

    With 4 in. BB Mecanum Wheels:

    • 2 - Left 4 in. BB Mecanum Wheel (am-4735L)
    • 2 - Right 4 in. BB Mecanum Wheel (am-4735R)

    With 13.7:1 NeveRest Hex:

    With 19.2:1 NeveRest Hex:
