Shift Block and Shaft Assembly

by AndyMark
Sold out
$19.00
$19.00 - $19.00
$19.00
$9.00
$9.00 - $9.00
$9.00
SKU am-0293
  • Description
  • Specifications
  • Documentation

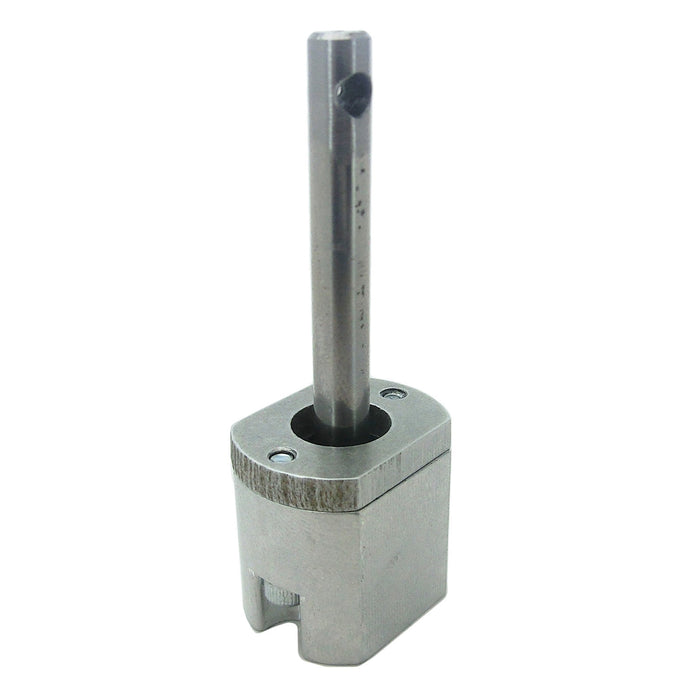

  • Here is the Shift Block and Shaft Assembly, used on AM Shifters and Super Shifters.

    We have recently improved this design in two areas:
    • There is a plate capturing the 3/16 in. ball bearing, instead of small screw heads
    • The #4-40 screws have been moved to the back side of the block, and now they can be accessed for easy removal.
    • The pocket around the e-clip holding the bearing on the shaft is smaller, making inadvertent removal of the e-clip to be much more difficult.

    Included Hardware:
    • One - Shifter Shaft
    • One - Shift Block
    • One - R3 ball bearing
    • One - #4-40 x 1/2 in. SHCS
    • Weight: 0.3 lbs.

  • Layout Prints

    am-0293 Shift Block and Shaft Asm.PDF

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
KK from Denver
Very Good

This product is very high quality and just as the CAD files and drawings show. We have had very good luck with it in a two-speed gearbox we made.
