This product has been discontinued.
Sprocket Kit, #25 Series, for 2013 FRC Replacement of Belts and Pulleys - am-2437 - migrated

Sprocket Kit, #25 Series, for 2013 FRC Replacement of Belts and Pulleys

by AndyMark
Save 32% Save 32%
$185.00 USD
$185.00 USD - $185.00 USD
$185.00 USD
$125.00 USD
$125.00 USD - $125.00 USD
$125.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued

This product is currently unavailable for purchase

SKU am-2437
  • Description
  • Documentation

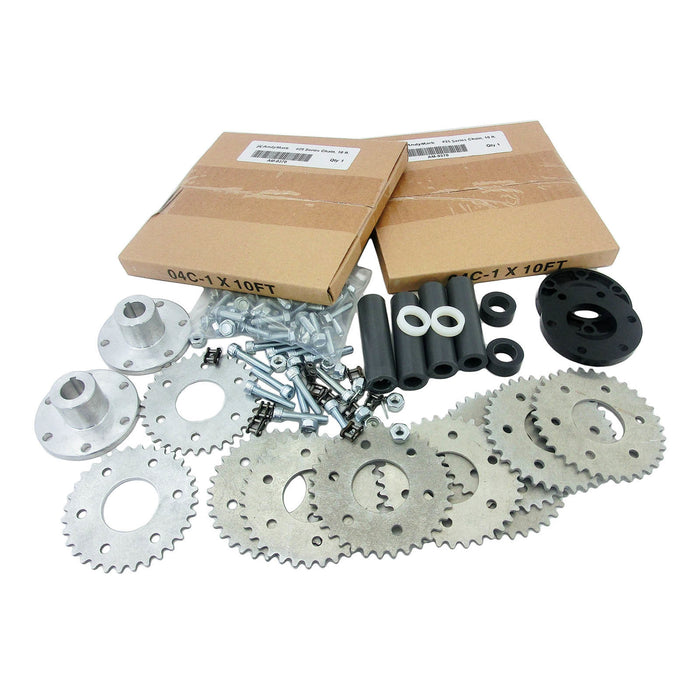

  • This is a kit of parts chosen to replace the timing belts and pulleys on the AndyMark Drive System for the 2013 FRC game.

    This kit includes #25 series aluminum sprockets, #25 series steel roller chain and associated master and half links, fasteners, hubs, and spacers.

    We also offer a #35 version (am-2436) of this same kit.

    Included Hardware:
    • Two - 500 Key Hub (am-0077), for mounting the S25-32L sprockets to the gearbox output shaft
    • Two boxes (20 feet) - #25 roller chain (am-0370)
    • Six - #25 Master Links (am-0371)
    • Four - #25 Half Links (am-0682)
    • Four - S25-32L Sprockets (am-0233), intended to be located on the gearbox output shaft
    • Eight - S25-34 Sprockets (am-0116), intended to be fastened to the wheels
    • One Bag of 50 - #10-24 x 3/4 long thread forming screws (am-1165)
    • Six - 3/16 Thick Nylon Spacer
    • Two - 250 Sprocket Spacers (am-0207a), for spacing the sprockets correctly on the gearbox output shaft
    • Twelve - #10-32 x 1.00 long SHCS for attaching the two sprockets and spacer to the 500 Key Hub on the gearbox output shaft
    • Twelve - #10-32 Nylock Nuts
    • Two - 1.42 in. long x 0.43 in. id plastic spacer (am-2446)
    • Four - 2.42 in. long x 0.43 in. id plastic spacer (am-2447)
    • Net Weight: 6.1 lbs

    Please refer to the .pdf layout drawing under the "Documents and Files" tab on this web page. All of the spacer locations are identified, which includes 6 of the brass spacers from the Kit Drive Chassis.

  • Layout Prints

    am-2437 Spacer Placement.pdf

Not Returnable

This product is not eligible for returns. All sales are final.
