Name: Standard 32 DP Gears
Brand: AndyMark
SKU: am-4324
Price: 12.8 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Description
Specifications
Documentation

32 DP gears are fairly common gears used in FIRST Robotics Competition gearboxes. Want to replace one of your existing gears? Building a custom gearbox? This page is a hub for all of our standard width, symmetrical 3/8 hex and 1/2 inch hex bore 32 DP gears.

Part Number	Tooth Count	Bore	Outside Dia (in.)	Pitch Dia (in.)

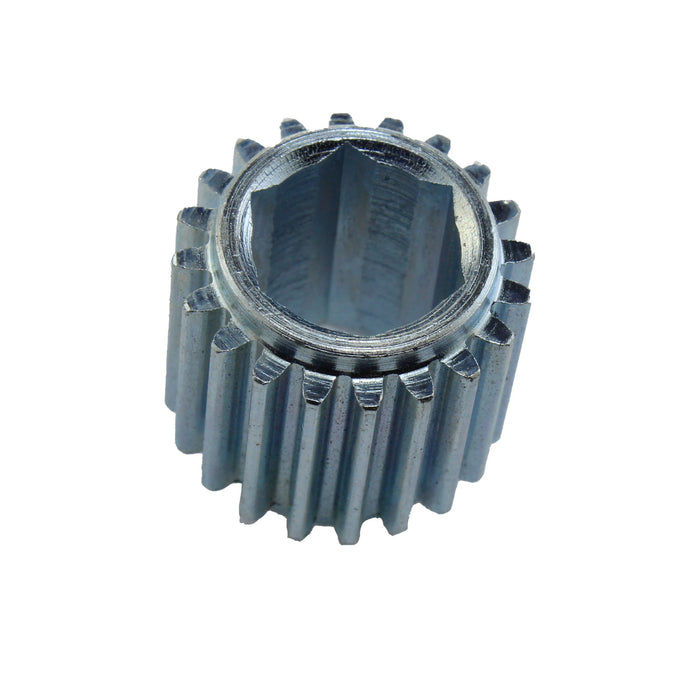

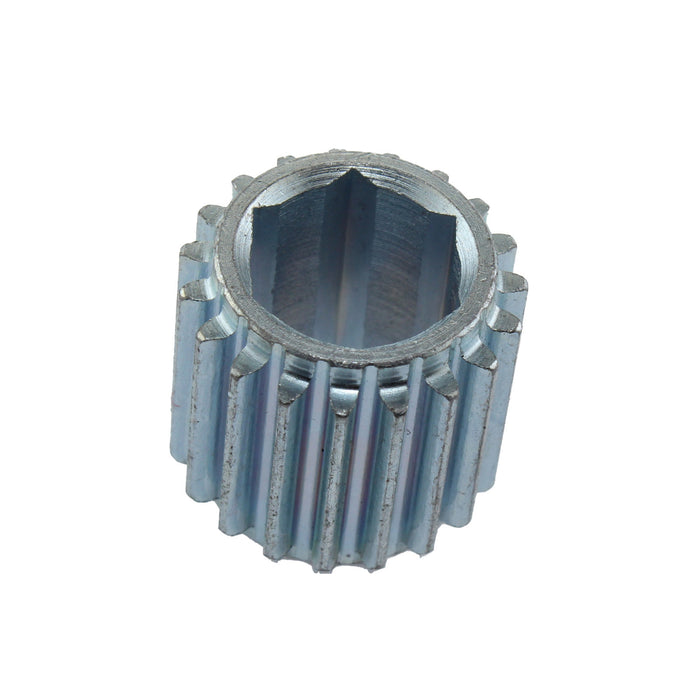

am-4324	19	0.375 Hex	0.656	0.594
am-4325	20	0.375 Hex	0.688	0.625
am-4326	32	0.375 Hex	1.063	1.000

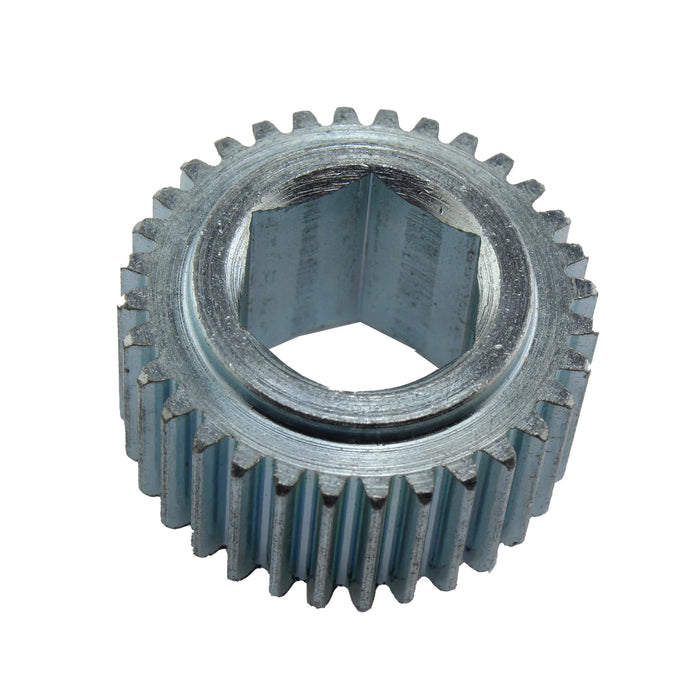

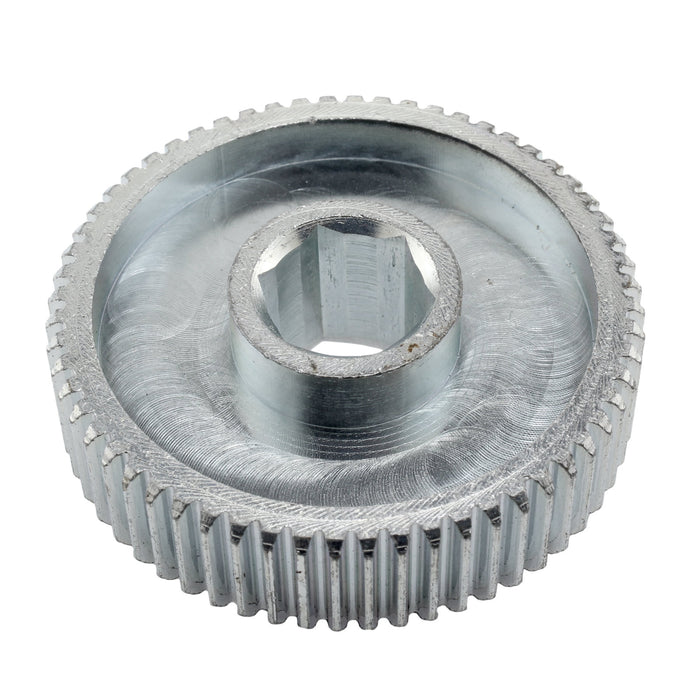

am-4330	32	0.500 Hex	1.063	1.000

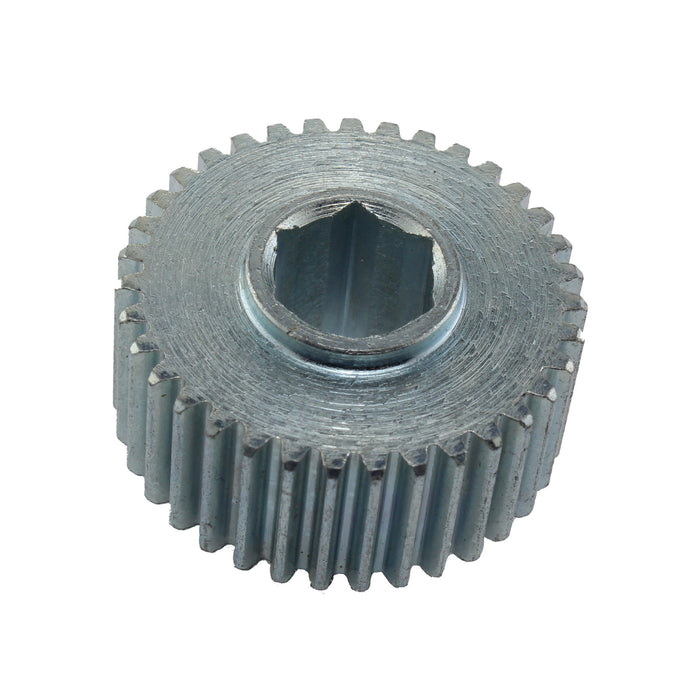

am-4327	35	0.375 Hex	1.156	1.094

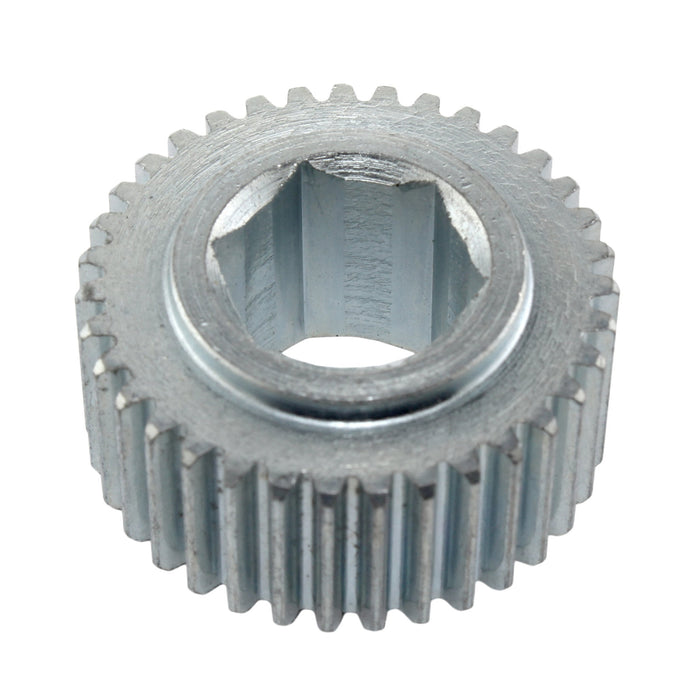

am-4331	35	0.500 Hex	1.156	1.094

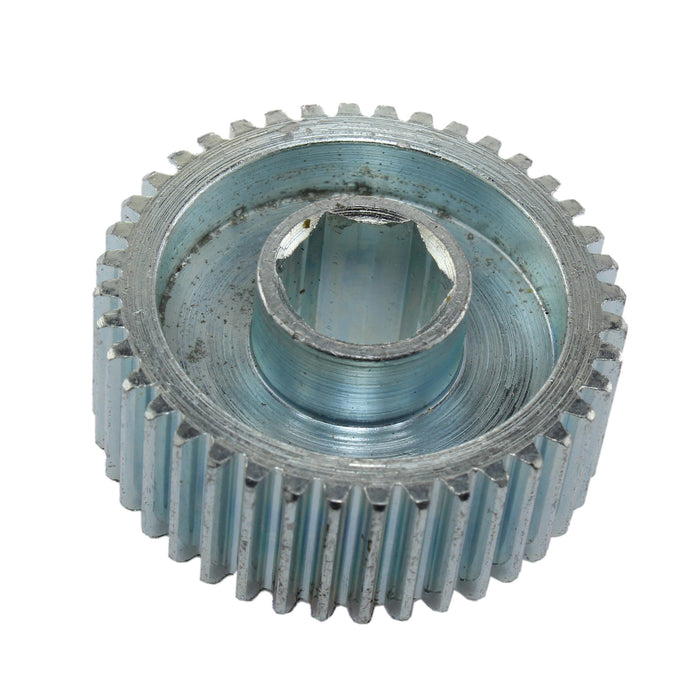

am-4328	40	0.375 Hex	1.313	1.250

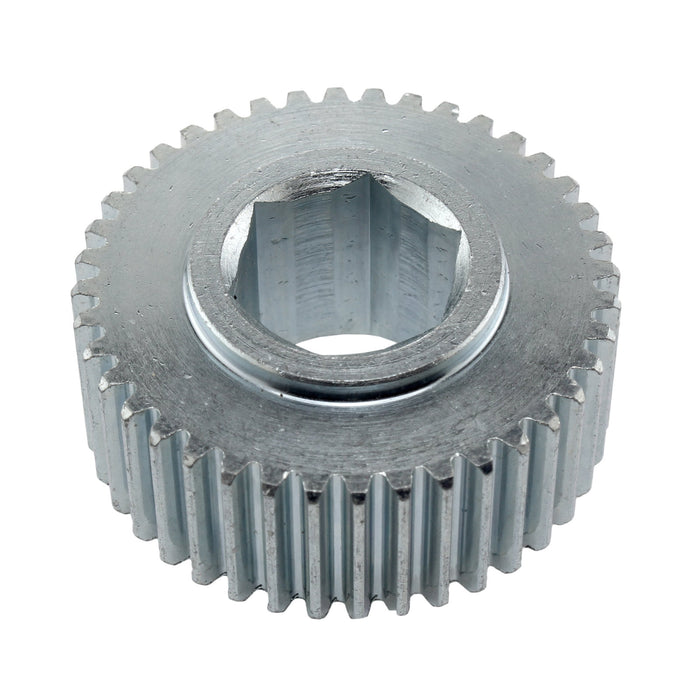

am-4332	40	0.500 Hex	1.313	1.250

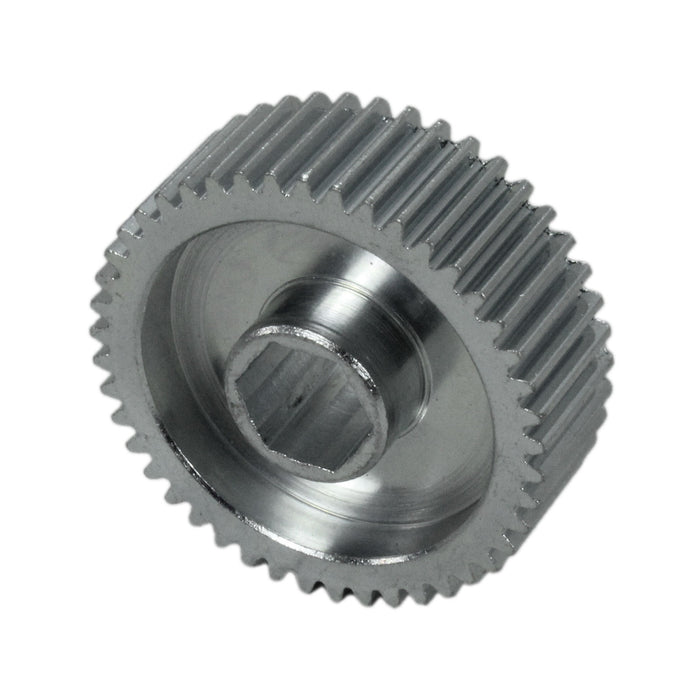

am-3694	45	0.375 Hex	1.469	1.406

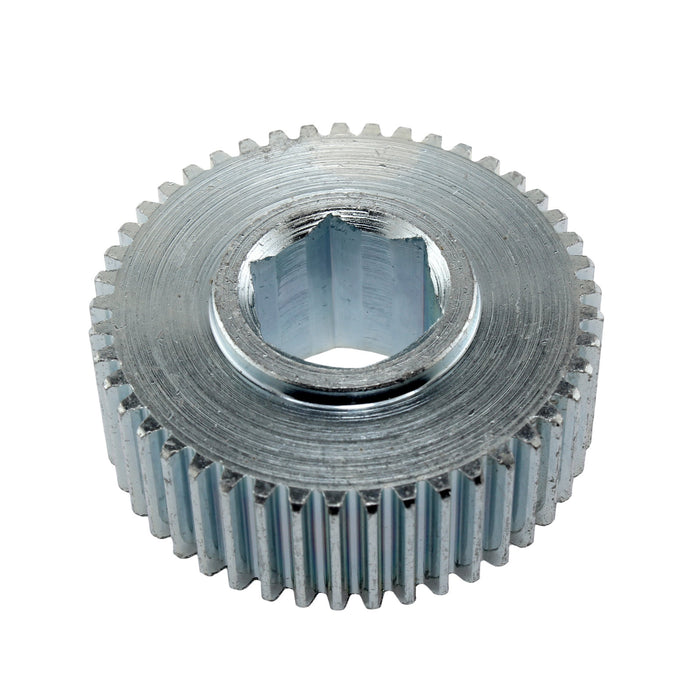

am-4333	45	0.500 Hex	1.469	1.406
am-4334	60	0.500 Hex	1.938	1.875

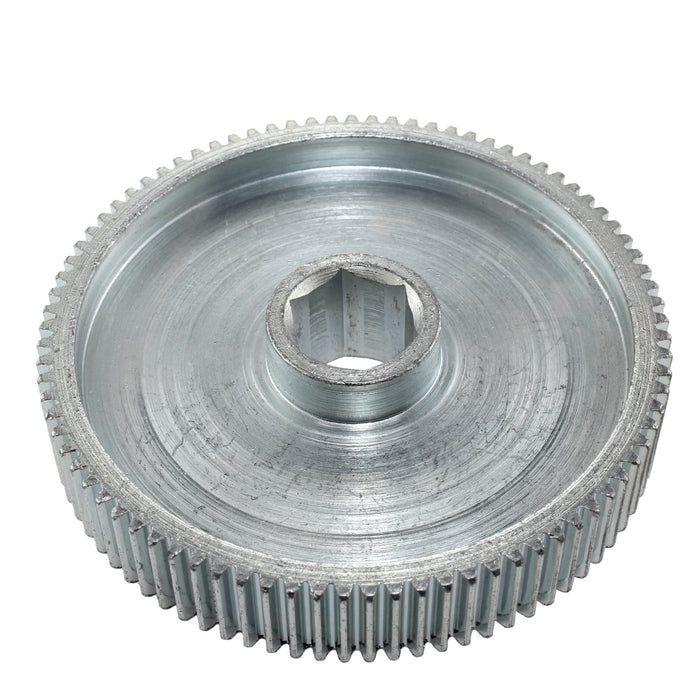

am-4335	85	0.500 Hex	2.719	2.656

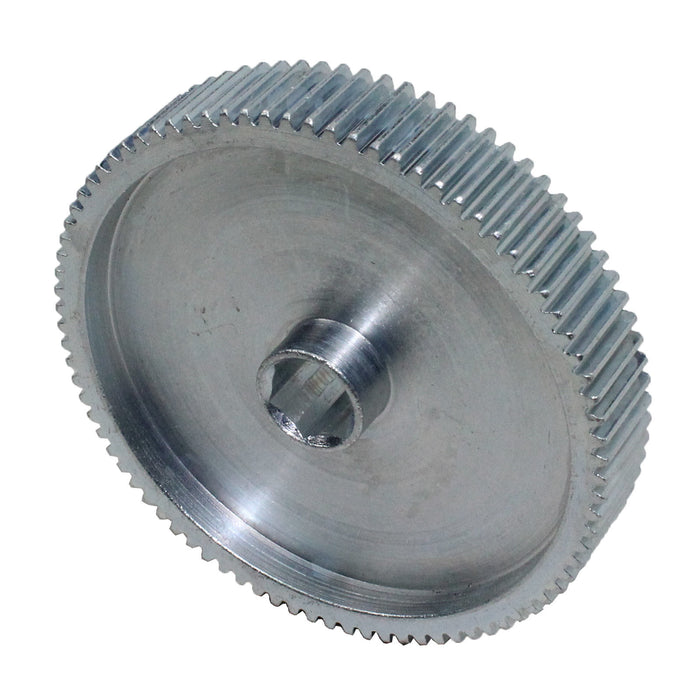

am-3533	85	0.375 Hex	2.719	2.656

- Bore: 0.501 - 0.507 in. Hex, 0.376 - 0.381 in. Hex
- Diametral Pitch: 32
- Face Width: 0.375 in.
- Finish: Zinc Plated
- Material: 4140 Steel
- Width: 0.500 in.
