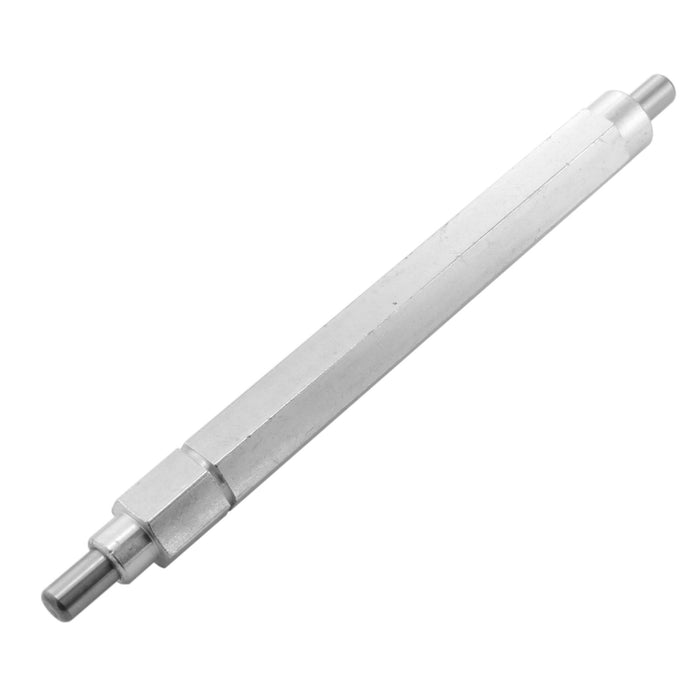

Toughbox Classic Series 1/2 in. Hex AM14U5 Output Shaft

by AndyMark

Sold out

$16.00 - $16.00

$16.00

$16.00

$16.00 - $16.00

$16.00

Description
Specifications
Documentation

This is the 1/2 in. hex steel output shaft for the Toughbox® series gearboxes when used with the AM14U5 prior to 2023.

The AM14U5 uses round bearings in the outside plate rather than hex bearings. As a result, this shaft differs from previous AM14U output shafts by having a round portion at the end.

Usage:

If attempting to use this shaft with the SRX Magnetic Encoder (am-3445), the SRX Magnetic Encoder Mounting Hardware Kit (am-3565) will be needed. The hardware allows for proper spacing of the encoder from the shaft magnet on Toughbox® Series Gearboxes. You will also need to remove the steel pin and replace with a magnet such as am-3505
- Diameter of Magnet: 0.25 in.
- Diameter of Small End: 0.37 in.
- Hex Width: 0.5 in.
- Length with Pin: 6 in.
- Length without Pin: 5.2 in.
- Material: Steel
- Weight: 0.34 lbs.
CAD Files
am-2566b Toughbox Hex Output Shaft No Pins No Dowels For AM14U5.STEP
am-2566b Toughbox 500 Hex Steel Output Shaft with Magnet or Dowel for AM14U5.STEP
am-2566b_mag am-2566b_dowel Toughbox Hex Output Shaft for AM14U5.STEP
Layout Prints
am-2566b Toughbox Output Shaft Hex AM14U5.pdf
