AndyMark Version of FRC Kit of Parts

Looking to start a FIRST Robotics Competition team, or looking to get the closest thing to the Kit of Parts Kickoff Kit?

Here you can find the AndyMark version! It's not exactly the same items, but it's pretty close. We include the "Season Specific" box, as well as the Black Tote, Gray Tote and of course include the Drive Base Kit, aka official 2025 KoP Chassis.

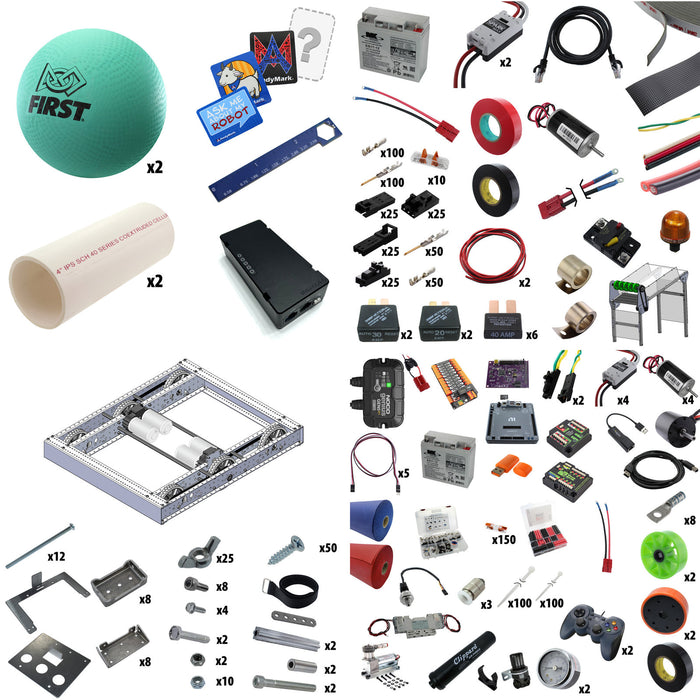

am-3576_2025 - AndyMark Version of FRC 2025 Kit of Parts Kickoff Kit

• 1 - am-3576_25BT - AndyMark Version of FRC 2025 Kit of Parts - Black Tote
  • Teams were able to opt out of this in exchange for $250 in vouchers (contents listed below)
  • KitBot items are included in this tote
• 1 - am-3576_25GT - AndyMark Version of FRC 2025 Kit of Parts - Gray Tote (aka Rookie Tote)
  • Only New (“rookie”) teams receive this Tote (contents listed below)
• 1 - am-3576_25DB - AndyMark Version of FRC 2025 Kit of Parts - Drive Base Kit
  • Veteran teams could opt out for a Voucher from AndyMark (contents listed below)
• 1 - am-3576_25SS - AndyMark Version of FRC 2025 Kit of Parts - Season Specific
  • All teams received this for the 2025 season (contents listed below)

am-3567_25BT - Black Tote only

AndyMark Version of FRC 2025 Black Tote - Compare to Official list

• 1 - Black Electrical Tape (am-3582_Black)
• 1 - Red Electrical Tape (am-3582_Red)
• 1 - Battery Power Cable Custom Length, 22 inches (am-0339_22) - *replaces 6 AWG wire
• 1 - Surface Mount 120A Breaker by Eaton Bussmann (am-0282a)
• 1 - 25 ft 12 Gauge Bonded Silicone Jacketed Wire (am-4698-25) - *25ft instead of 15ft
• 2 - 18 gauge red black bonded wire 5ft length (am-3082_wire)
• 1 - 0.625 in. Wide 30 in. Long Constant Force Spring (am-4657)
• 1 - 0.5 in. Wide 30 in. Long Constant Force Spring (am-4666)
• 1 - Black CatTongue Gription Tape (am-5627)
• 10 - WAGO 221 Series InLine Splicing Connector with Lever (am-4728)
• 2 - 20 Amp Snap Action Breaker (am-0289)
• 2 - 30 Amp Snap Action Breaker (am-0290)
• 6 - 40 Amp Snap Action, AT2 Breaker (am-4947)
• 2 - Spark MAX Motor Controller (am-4261)
• 1 - 5 ft. Black Ethernet Cable (am-3845)
• 1 - Locking PWM Wire / Cable Making Kit (am-5483)
• 1 - 2-Pin Locking Cable Making Kit (am-5506)
• 1 - 6 Gauge 12 Inch PVC Insulated Battery Cable (am-0009)
• 1 - 2.5 in. CIM Motor (am-0255) - *a 2nd is included in the KitBot line item
• 1 - MK Battery, ES17-12 (1/2 of am-0844)
• 1 - 1/2 in. Wide 36 yd long VHB Foam Mounting Tape 3M VHB 4941 (am-5297)
• 1 - AM Robot Signal Light (am-3583)
• 1 - 2025 KitBot with non-drilled extrusion (am-5595) - *replaced many items on the list for the KitBot

• Hex to 3D print Adapter Pack of 4 pieces - WCP-1121 - *These are not needed for the AM version of KitBot
• Kitbot Radio Mount Bracket - KB-25014-2 - *Can be printed from provided files

am-3576_25GT - Gray Tote

AndyMark Version of FRC 2025 Gray Tote - Compare to Official list

• 1 - 574 ml Air Reservoir with Push Connect Fittings (am-2649)
• 2 - Logitech Controller F310 (am-2064)
• 1 - Pneumatic Control Module (am-2858)
• 1 - REV Power Distribution Hub (am-5608)
• 1 - Voltage Regulator Module (am-2857)
• 1 - NOCO Battery Charger 1 Bank with SB50 Connectors (am-4968_1)
• 4 - 2.5 in. CIM Motor (am-0255)
• 1 - MK Battery, ES17-12 (1/2 of am-0844)
• 1 - NI roboRIO 2.0 (am-3000a)
• 3 - 6 Gauge 12 Inch PVC Insulated Battery Cable (am-0009)
• 1 - Bumper Material Cordura Red 160 in. x 20 in. (+/- 2 in.) (am-2675)
• 1 - Bumper Material Cordura Blue 160 in. x 20 in. (+/- 2 in.) (am-2676)
• 1 - Viair 90C Air Compressor (am-2005)
• 1 - REV NEO Brushless Motor V1.1 (am-4258a)
• 4 - REV SPARK MAX Brushless and Brushed DC Motor Controller (am-4261)
• 1 - navX2 MXP Robotics Navigation Sensor (am-3060c)
• 1 - Black Electrical Tape (am-3582_Black)
• 1 - USB 2.0 to Ethernet Adapter (am-3580) - *does not include extra USB ports
• 2 - 3 in. Stealth Wheel 1/2 in. Hex Bore Orange 40A Durometer (am-4716_orange)
• 2 - 3 in. Compliant Wheel 1/2 in. Hex Bore Green 35A Durometer (am-3945_green)
• 1 - 6 Foot USB A to USB B 2.0 Cable (am-3579)
• 8 - 6 Gauge Compression Lug Connector 1/4 Stud Hole BURNDY #: YAZV6CTC14FX (am-0805)
• 2 - 36 in. Locking CAN Cable (am-5210-3600)
• 5 - 36 in. PWM Extension Cables (am-0695b)
• 150 - WAGO 221 Series InLine Splicing Connector with Lever (am-4728) - *replaces many individual electrical connectors
• 1 - CKD Double Solenoid Valve (am-2343a)
• 3 - Pneumatic Fitting Straight 1/4 in. Tube to Thread M5 Male (am-2384)
• 1 - Norgren Regulator and Bracket (am-2020)
• 1 - REV Analog Pressure Sensor (am-3219)
• 100 - Cable Ties 4 in. (am-1589_natural)
• 100 - Cable Tie 8 in. (am-1552_natural)
• 2 - Pressure Gauge 0-160 psi (am-3147a)
• 1 - Micro SD to USB Reader (am-5292)
• 1 - Pneumatic Reservoir Bracket (am-2008)
• 1 - Heat Shrink Kit Red and Black 198 Pieces (am-4767)
• 1 - Pneumatic Fittings Kit (am-2678) - *replaces many individual pneumatic fittings

am-3576_25DB - Drive Base

AndyMark Version of FRC 2025 Drive Base - Compare to Official list

• 1 - AM14U6 - 6 Wheel Drop Center Robot Drive Base - 2025 FRC Kit of Parts Drive Base (am-14u6_846)
• 1 - AM14U Family Vertical Battery Tray (am-3964a)
• 1 - AM14U Family Bumper Brackets and Fasteners Kit (am-3966)

am-3576_25SS - Season Specific

AndyMark Version of FRC 2025 Season Specific - Compare to Official list

• 2 - Sticker Pack of 4 (am-4634)
• 1 - Vivid-Hosting VH-109 FRC Radio (am-5583)
• 2 - REEFSCAPE℠ Game Piece 2, Algae (am-5602)
• 2 - REEFSCAPE℠ Game Piece 1, Coral (am-5601)
• 1 - Robits Ruler (am-5025)
