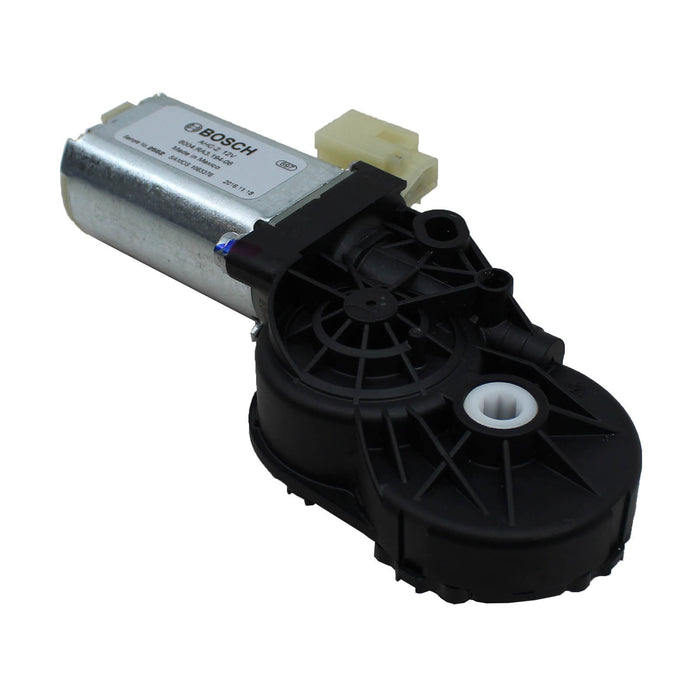

Bosch Seat Motor

by AndyMark
Sold out
$39.00 - $39.00
$39.00
$39.00
$39.00 - $39.00
$39.00
SKU am-3493
  • Description
  • Specifications
  • Documentation
  • This motor is often used in power seats for raising the seat up and down. It is perfect for precise positioning and not back driving when power is cut. This motor features an integrated hall sensor to enable accurate positioning feedback.
    Check out our Bosch Seat Motor DIO Kit that works great with this motor.

    Usage:
    WPI has some great documentation on how to interface and mount this motor.
    https://wpilib.screenstepslive.com/s/4485/m/63630/l/679357-bosch-seat-motor
     For an easy conversion to a 1/2 in. Hex shaft, try our Hex Adapter Shaft for Bosch Motor (am-3723)
    • Length: 13.5 in.
    • Manufacturer: Bosch LLC
    • Manufacturer Part #: 6 004 RA3 194-06
    • No Load Current: less than or equal to 3 A
    • No Load Free Speed: 24 RPM
    • Stall Current: 12 A
    • Stall Torque: 16.2 ft-lb [22 N-m]
    • Wattage: 44 W
    • Weight: 0.84 lbs.

  • Datasheets

    am-3493 2016-12-21 spec sheet - Bosch FRC motor 6 004 RA3 194-06.pdf

Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
33%
(1)
0%
(0)
0%
(0)
C
CC
Very impressed with the quick service and s...

Very impressed with the quick service and shipping. The part was as stated. Ended up not needing the part, but damaged the connector so will have to keep it.

J
JH
Very handy little motors

These motors have very high torque, low RPM, low current draw for their power, and are quite durable in spite of lots of plastic parts. The hollow shaft makes them easy to adapt for many uses, and they have a flat side and a through hole that makes it easy to mount on a flat surface. Plastic gears do mean you have to be careful to not overload them.

S
SM
Bewarre

Perfectly fine in the proper application. Beware though, it has plastic gears that cannot handle a shock load and will strip the teeth out of it.
