2025 Everybot Climber Kit

These kits are parts of the 2025 Everybot by Team 118. Designed to deep climb, this simple kit can help any team create a more competitive robot.

AndyMark is happy to be working with Team 118 and their incredible Everybot team to make this climber available to all teams. The Everybot is an affordable, competitive, and elegant robot that can be created from accessible materials and tools. We are honored to be working directly on the Everybot project as we have admired the ambition and the team behind it since its beginning.

The Everybot robot was designed with the parts from the FIRST Kit of Parts, AM14U6 Chassis, and a few other tidbits included in the Climber Assembly.

Note: This kit does not include any tube plugs, box extrusion, or hinges.

Included Items:

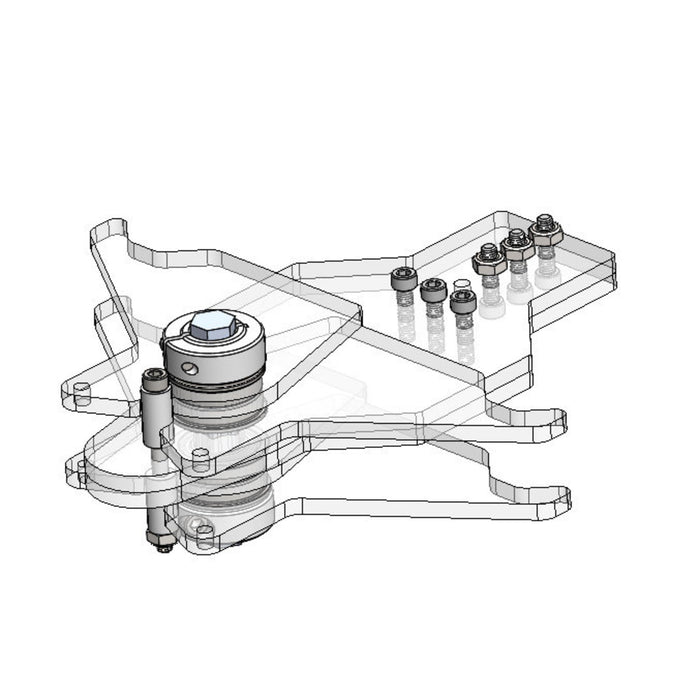

am-5609 Barb Assembly Components:

• 4 - Everybot 25 Polycarbonate Barb Plate (am-5609_barb)
• 2 - Everybot 25 Polycarbonate Body Plate (am-5609_body)
• 1 - 0.5 in. 7075 Aluminum Hex Shaft Stock (am-2291-1)
• 2 - 0.5 in. 1 Part 1/2 in. Hex Collar Clamps (am-1526)
• 4 - 1/2 in. Hex ID 1.125 in. OD Shielded Flanged Bearing (FR8ZZ-HexHD) (am-2986)
• 6 - 10-32 x 0.75 in. Socket Head Cap Screw (am-1047)
• 1 - 10-32 x 2.25 in. Socket Head Cap Screw (am-1156)
• 4 - 10-32 Nylock Jam Nut (am-1063)
• 2 - 0.192 in. ID 0.375 in. OD 0.750 in. Long Nylon Spacer (am-4107)
• 20 - #33 Rubber Bands (am-5024_black)

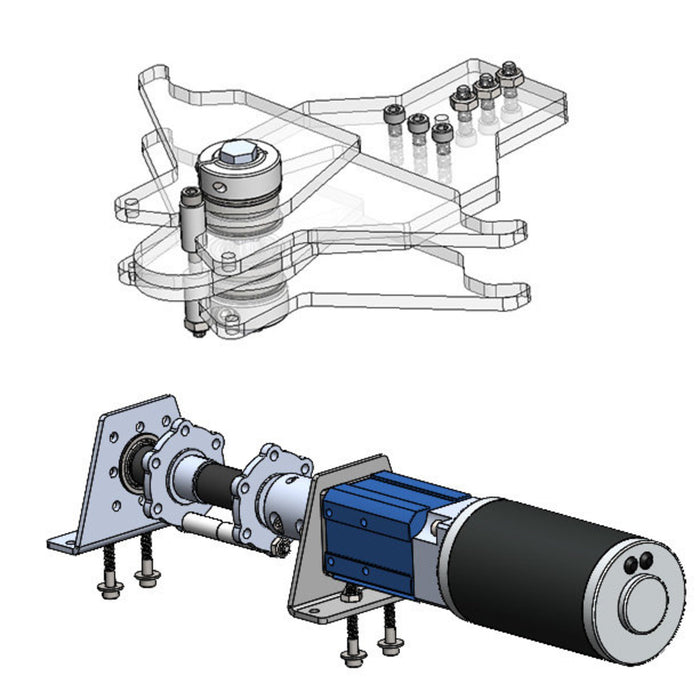

am-5610 Climber Assembly:

• 1 - Barb Assembly (am-5609)
• 1 - 100:1 Sport Hex Shaft (am-3973_100)
• 1 - CIM and NEO Sport Gearbox Motor Mount (am-3992a)
• 1 - Great Red Tacky Grease, 14.2 gram (am-2768)
• 1 - Sport Gearbox Mount Bracket (am-4245)
• 1 - Bearing and Motor Mount Bracket (am-4244)
• 1 - 0.063 in. Thick 1/2 in. Hex Bore Molded Spacer (am-3948-063)
• 1 - 0.125 in. Thick 1/2 in. Hex Bore Molded Spacer (am-3948-125)
• 1 - 0.250 in. Thick 1/2 in. Hex Bore Molded Spacer (am-3948-250)
• 1 - 0.375 in. Thick 1/2 in. Hex Bore Molded Spacer (am-3948-375)
• 1 - 0.500 in. Thick 1/2 in. Hex Bore Molded Spacer (am-3948-500)
• 1 - 1.000 in. Thick 1/2 in. Hex Bore Molded Spacer (am-3948-1000)
• 1 - 0.5 in. Hex and Keyed Shaft Coupling (am-1560)
• 2 - 1/2 in. Hex Hub (am-4124)
• 1 - 1/2 in. Hex ID 1.125 in. OD Shielded Flanged Bearing (FR8ZZ-HexHD) (am-2986)
• 1 - 0.5 in. 1 Part 1/2 in. Hex Collar Clamps (am-1526)
• 4 - 10-32 x 1.5 in. Socket Head Cap Screw (am-1014)
• 1 - 10-32 x 3 in. Socket Head Cap Screw (am-1522)
• 4 - #10 Flat Washer (am-1026)
• 5 - 10-32 Nylock Jam Nut (am-1063)
• 1 - 0.375 OD x 0.194 ID x 0.125 Long Nylon Spacer (am-1732)
• 1 - 0.194 in. ID 0.375 in. OD 0.250 in. Long Nylon Spacer (am-1700)
• 2 - 0.194 in. ID 0.375 in. OD 1.000 in. Long Nylon Spacer (am-1696)
• 1 - 10 feet of Rope 1/8 in. diameter (am-4559)
• 1 - 2.5 in. CIM Motor (am-0255)

-----------------------------------------------------------------------------------------------------
