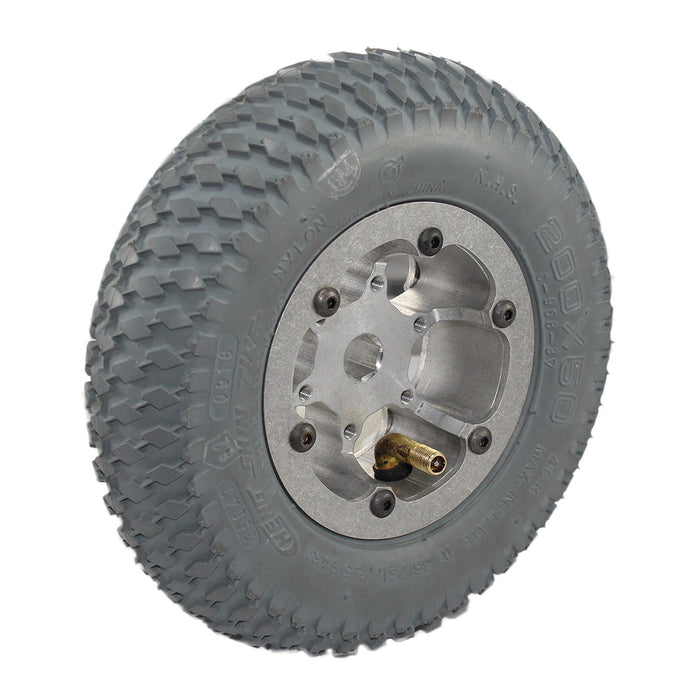

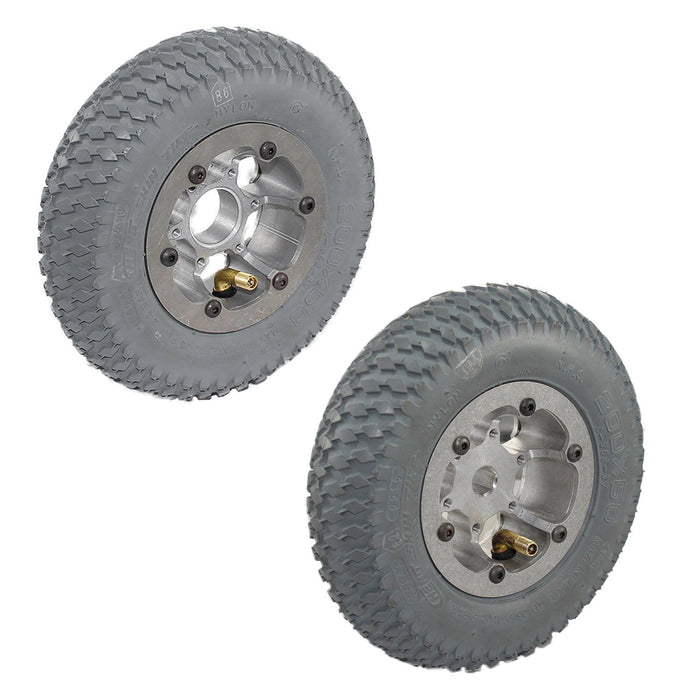

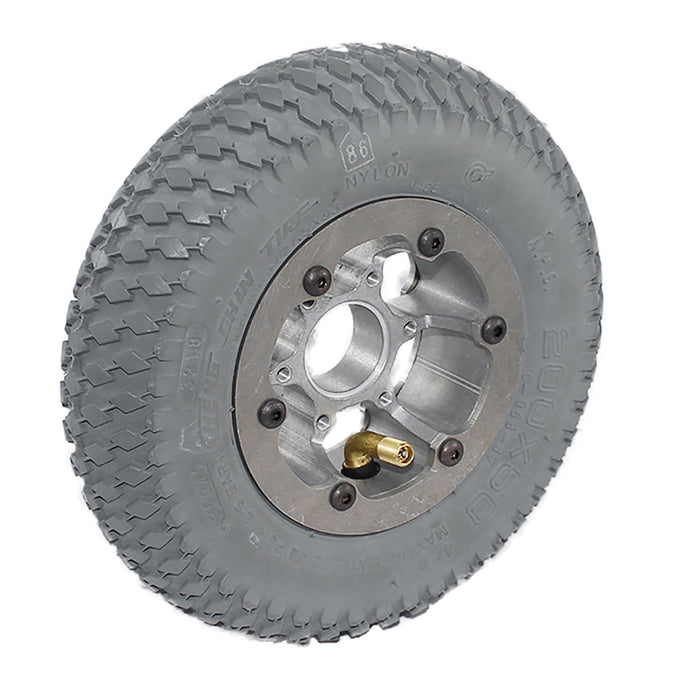

These pneumatic wheels offer a significant hub strength improvement over our popular plastic-hubbed 8in. Pneumatic Wheels. The variants of these strong wheels feature either a 1.125 in. Bearing Bores or a 0.5 Hex Bore. The Bearing Bore is a perfect choice for building a dead-axle style drivetrain, or for adding non-1/2 hex hubs for live axle configurations. A 1/2 Hex Bore is a perfect choice for building a WCD style drivetrain, or any live 1/2 hex axle style drive configuration. The hub of the wheels are comprised of a machined aluminum core, with two flat machined plates bolted to them to retain the tube and tire. These products are great for both FRC drivetrain applications, or non-FIRST outdoor applications as well.
These products ship as an unassembled kit.
Included Items:
- 1 - 8 in. Pneumatic Wheel Inner Tube (am-0973)
- 1 - 8 in. Pneumatic Wheel Tire (am-0972)
- 1 - 8 in. HD Pneumatic Wheel Hub Assembly (am-3933 or am-3934)
-----------------------------------------------------------------------------------------------------------------------------
-
- Bolt Pattern: 1.875 in. Circle
- Diameter: 7.6 in.
-
CAD Files
am-3936 Aluminum 8IN Pneumatic 500IN Hex Bore Wheel.STEP
am-3935 Aluminum 8IN Pneumatic Bearing Bore Wheel.STEPLayout Prints
am-3936 8IN HD Pneumatic 500IN Hex Bore Wheel.PDF
am-3935 8IN HD Pneumatic Wheel 1.125IN Bearing Bore.PDF
