This product has been replaced by BD58PA

AM14U4 8 in. Pneumatic wheel Toughbox Mini Bundle - BD48PA - migrated

AM14U4 8 in. Pneumatic wheel Toughbox Mini Bundle

by AndyMark

$699.00 USD - $699.00 USD

$699.00 USD

$699.00 USD

$699.00 USD - $699.00 USD

$699.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by BD58PA

Description
Specifications
Documentation

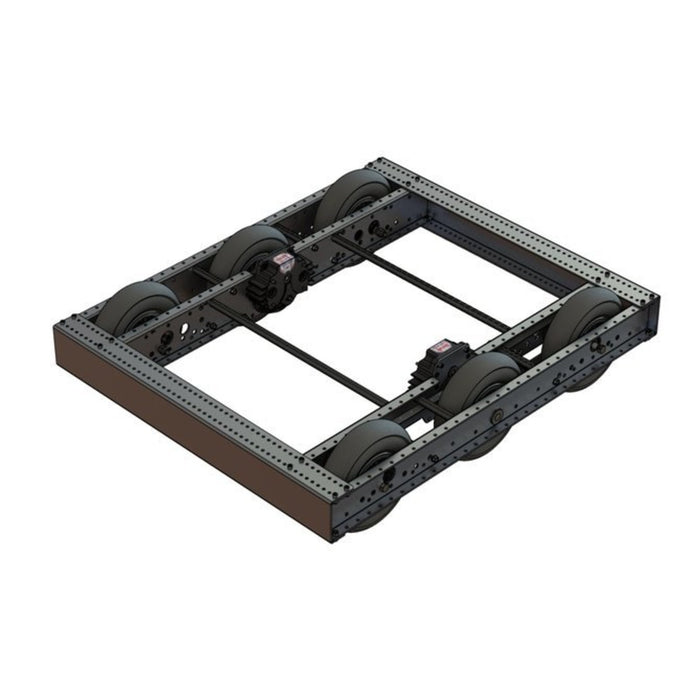

This bundle features our popular AM14U4 Drive Base paired in a rugged configuration with our 8 in. SD Pneumatic Wheels! This chassis configuration is tough with a good level of ground clearance to get over some difficult obstacles. This configuration is great for situations where you need some extra shock-absorption or need to drive outdoors on concrete. Powering this durable drivetrain are Toughbox Mini gearboxes, with a 12.75:1 overall ratio. This product ships as an un-assembled kit, and does not include motors.
Parts Include:
- 2- ToughBox Mini Gearbox, 12.75:1 Ratio
- 2 - Inside Rail(am-3922)
- 2 - End Plate(am-3920)
- 2 - Outside Plate(am-3921)
- 2 - Churro, 24.25 in. Long (am-2974)
- 28 - Churro Screws (am-1310)
- 4 - Nut, Nylock, 3/8-16(am-1054)
- 4 - Screw, HHCS, 3/8-16 x 4250, Gr5 Zinc(am-1297)
- 2 - Hex Spacer, Plastic, 0.50 in. id, 1.124 in. od, 0.570 in. long(am-1305)
- 4 - Spacer, 0.280 in., 0.382 in. ID 0.518 in. OD, Plastic(am-1306)
- 4 - Spacer, 0.850 in., 0.380 in. ID 0.75 in. OD, Plastic(am-1307)
- 24 - Screw, SHCS, 10-32 x 500(am-1002)
- 24 - Nut, Nylock, 10-32(am-1042)
- 12 - Churro, 3.375 in. Long(am-2569)
- 48 - Screw, Thread Forming, 10-24 x 1250, Steel Zinc(am-1266)
- 2 - ToughBox Long Hex Shaft (am-0801a)
- 6 - 42T Pulleys (am-2234)
- 6 - 42T Pulley Extensions (am-2813)
- 4 - 755-5M-15 Belt (am-3660)
- 6 - 8in Pneumatic Wheels (am-0970)
- 2 - 500EX Hex Hub (am-2568)
- 2 - 500Hex Molded Spacer, 0.500in Length (am-3948-500)
- 2 - 500Hex Molded Spacer, 1.000in Length (am-3948-1000)
- 2 - 1.2in HEX EX Spacer (am-3896-1200)
- 4 - 250 Sprocket Pulley SPacer (am-0207a)
- 4 - 0.437t x 0.375ID Spacer (am-3337)
- 4 - Shoulder Spacer (am-1519)
- 4 - 3/8-16 x 4.750 Hex Bolt (am-1395)
- 4 - 3/8-16 Nylock Nut (am-1054)
- 3 - 1 ft. of Churro (am-3101-1)
- 36 - 10-32 x 3.25 SHCS (am-1258)
- 36 - 10-32 Nylock Nut (am-1042)
- 4 - 1614ZZ Bearing (am-0209)
- 2 - 500 HexHD Bearing (am-2986)
- 4 - R8ZZ Bearing (am-0181)
