EVO Slim Short Output Shafts for West Coast Drive Chassis

by AndyMark

$23.00 - $23.00

$23.00

$23.00

$23.00 - $23.00

$23.00

These shafts are used in some EVO Slim variants as the normal or shortened Output shaft.

Quantity

SKU

Description
Specifications
Documentation

These shafts are used in some EVO Slim variants as the normal or shortened Output shaft. There are 0.25 in. magnet pins installed in the rear of the shafts for encoders.

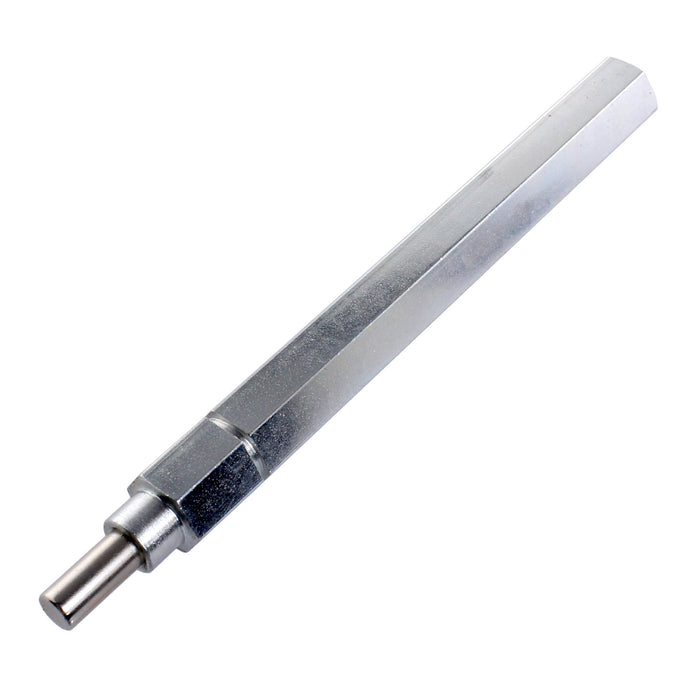

Specifications for am-4881:
- Overall Length: 5.45 in.
- Weight: 0.307 Ibs

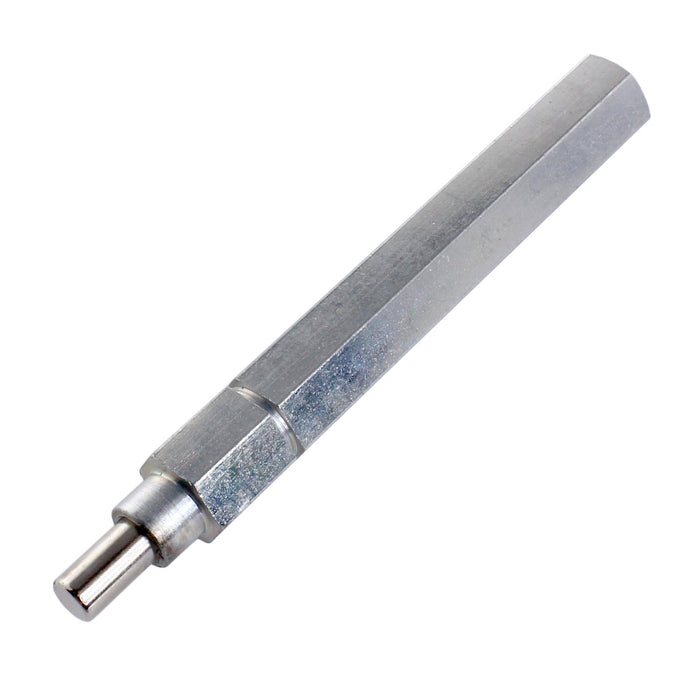

Specifications for am-4882:
- Overall Length: 4.2 in.
- Weight: 0.238 Ibs
- Hex Width: 0.5 in.
- Material: Steel
CAD Files
am-4882 EVO Slim Short Shaft.STEP
am-4881 EVO Variant, Short Shaft.STEP
Layout Prints
am-4882 EVO Slim Short Shaft.PDF
am-4881 EVO Variant Short Shaft.PDF
