NeveRest Classic Gearbox No Motor

Name: NeveRest Classic Gearbox No Motor
Brand: AndyMark
SKU: am-3106
Price: 7.5 USD
Availability: InStock
Rating: 4.75 (8 reviews)

by AndyMark

Save up to 50%

$15.00 USD - $16.00 USD

$15.00 USD

$7.50 USD - $8.00 USD

$7.50 USD

Quantity

SKU

Description
Specifications
Documentation

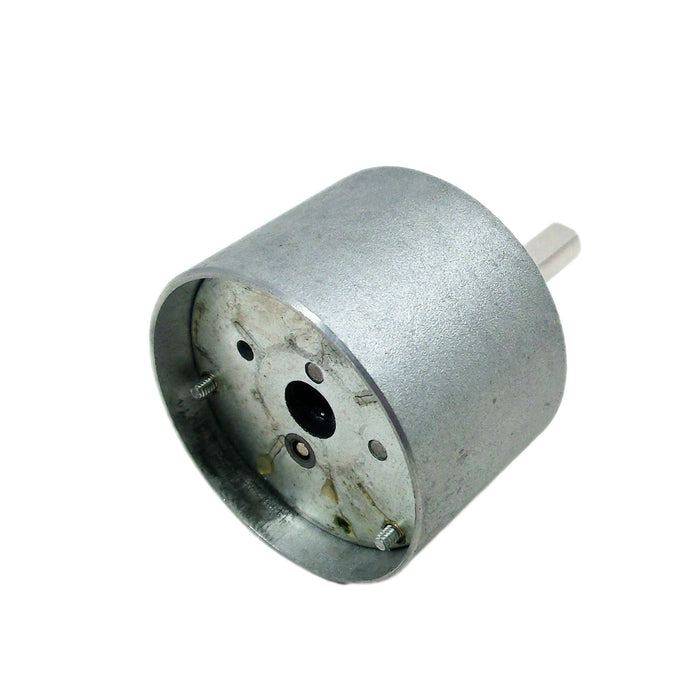

The NeveRest gearbox is the cutting edge gearbox found on the NeveRest gearmotor. If you wish to change out the gearbox on an existing NeveRest 40 or NeveRest 60 gearmotor or have the motor only, this is a drop in replacement gearbox. Screws are included with the gearbox.

If you need the output shaft to be a 1/2 in. Hex, check out the 6 mm D to 0.5 in. Hex-Shaft Adapter (am-3744a)

Choose between 40:1 or 60:1
- Bolt Pattern: Six 0.098 in. Holes on a 1.22 in. diameter bolt circle
- Lubrication: Ships Lubricated
- Material: Steel
- Maximum Diameter: 1.457 in.
- Motor Input: NeveRest Classic
- Motor Quantity: 1
- Mounting Holes: 6x M3 threaded holes
- Output Shaft Diameter: 6 mm [0.24 in.] with 0.5 mm deep flat
- Overall Length: 2.163 in.
- Ratio: 40:1, 60:1
- Weight: 0.18 - 0.19 lbs.
CAD Files
am-3107 NR 60 Gear Box.STEP
am-3106 NR 40 Gear Box.STEP
Layout Prints
am-3106 am-3105 am-3607 Gearboxes for NeveRest Motors.PDF
