Robits Intermediate Structures Kit

by AndyMark
$529.00 - $529.00
$529.00
$529.00
$529.00 - $529.00
$529.00
This expansion kit of Robits tubing, gussets, and 10-32 hardware is excellent for creating many structures for FIRST Tech Challenge robots.
SKU am-5160
  • Description
  • Documentation
  • The Robits Intermediate Structures Expansion is a great way to increase your collection of Robits parts. This expansion is one of our biggest bundles of components allowing users to make simple, rigid, and robust structures. This kit is comprised of a large variety of custom Robits tubing, gussets, and 10-32 hardware making it excellent for creating many structures for FIRST Tech Challenge robots.

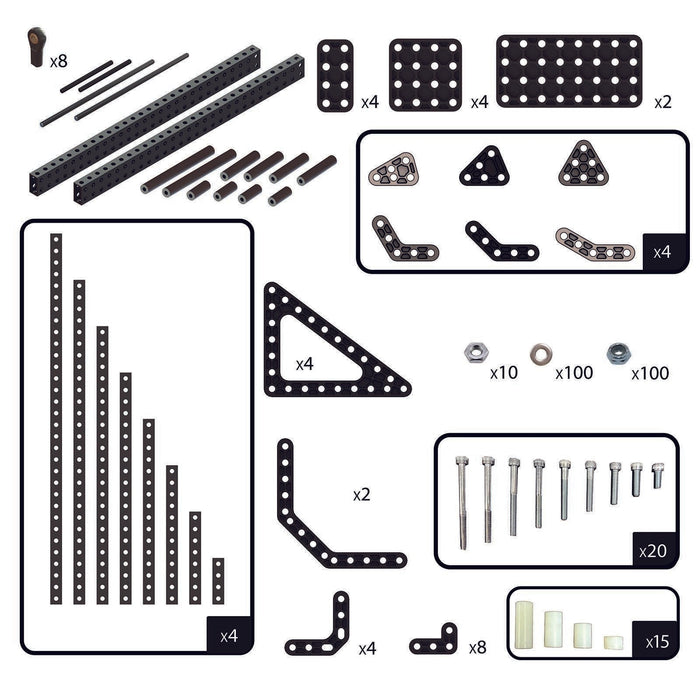

    Included Items:

    Structure:

    • 4 - 10-32 Female Threaded 1 in. Long 0.375 in. Round Standoff (am-1701)
    • 4 - 10-32 Female Threaded 2 in. Long 0.375 in. Round Standoff (am-1702)
    • 2 - 10-32 Female Threaded 4 in. Long 0.375 in. Round Standoff (am-1704)
    • 4 - Robits 0.5×0.5×2.0 Tube (am-5001-0200)
    • 4 - Robits 0.5×0.5×4.0 Tube (am-5001-0400)
    • 4 - Robits 0.5×0.5×6.0 Tube (am-5001-0600)
    • 4 - Robits 0.5×0.5×8.0 Tube (am-5001-0800)
    • 4 - Robits 0.5×0.5×10.0 Tube (am-5001-1000)
    • 4 - Robits 0.5×0.5×12.0 Tube (am-5001-1200)
    • 4 - Robits 0.5×0.5×14.0 Tube (am-5001-1400)
    • 4 - Robits 0.5×0.5×16.0 Tube (am-5001-1600)
    • 4 - Robits 1.0×0.5×14.0 Tube (am-5026-1400)
    • 4 - Robits Angle Gusset (30°) (am-5010_030)
    • 4 - Robits Angle Gusset (45°) (am-5010_045)
    • 4 - Robits Angle Gusset (60°) (am-5010_060)
    • 4 - Robits Angle Gusset (120°) (am-5010_120)
    • 4 - Robits Angle Gusset (135°) (am-5010_135)
    • 4 - Robits Angle Gusset (150°) (am-5010_150)
    • 4 - Robits Slotted Beam (am-5011_slot)
    • 8 - Robits 2×3 L Gusset (am-5004_2x3)
    • 4 - Robits 3×3 Corner Gusset (am-5005_3x3)
    • 2 - Robits 5×5 Corner Gusset (am-5005_5x5)
    • 4 - Robits 2×4 Plate (am-5006_2x4)
    • 4 - Robits 4×4 Plate (am-5006_4x4)
    • 2 - Robits 4×8 Plate (am-5006_4x8)
    • 4 - Robits 7×9 Triangle Gusset (am-5007_7x9)

    Hardware:

    • 15 - Spacer, 0.375 OD x 0.194 ID x 0.25 Long Nylon (am-1700)
    • 15 - Spacer, 0.375 OD x 0.194 ID x 0.50 Long Nylon (am-1697)
    • 15 - Spacer, 0.375 OD x 0.194 ID x 0.75 Long Nylon (am-4107)
    • 15 - Spacer, 0.375 OD x 0.194 ID x 1.00 Long Nylon (am-1696)
    • 20 - Screw, SHCS, 10-32 x 0500 (am-1002)
    • 20 - Screw, SHCS, 10-32 x 0750 (am-1047)
    • 20 - Screw, SHCS, 10-32 x 1000 (am-1056)
    • 20 - Screw, SHCS, 10-32 x 1250 (am-1041)
    • 20 - Screw, SHCS, 10-32 x 1500 (am-1014)
    • 20 - Screw, SHCS, 10-32 x 1750 (am-1048)
    • 20 - Screw, SHCS, 10-32 x 2000 (am-1049)
    • 20 - Screw, SHCS, 10-32 x 2250 (am-1156)
    • 20 - Screw, SHCS, 10-32 x 2500 (am-1024)
    • 100 - 10-32 Nylock Jam Nut (am-1063)
    • 10 - 10-32 Jam Nut (am-1612)
    • 100 - #10 Steel Washer (am-1026)
    • 8 - 10-32 Female Threaded Nylon Rod End (am-4988)
    • 2 - Threaded Rod, 10-32 x 3000 (am-1713)
    • 2 - Threaded Rod, 10-32 x 6000 (am-1714)
    ----------------------------------------------------------------------------------------------------

  • CAD Files

    am-5160 Robits Intermediate Structures.zip
