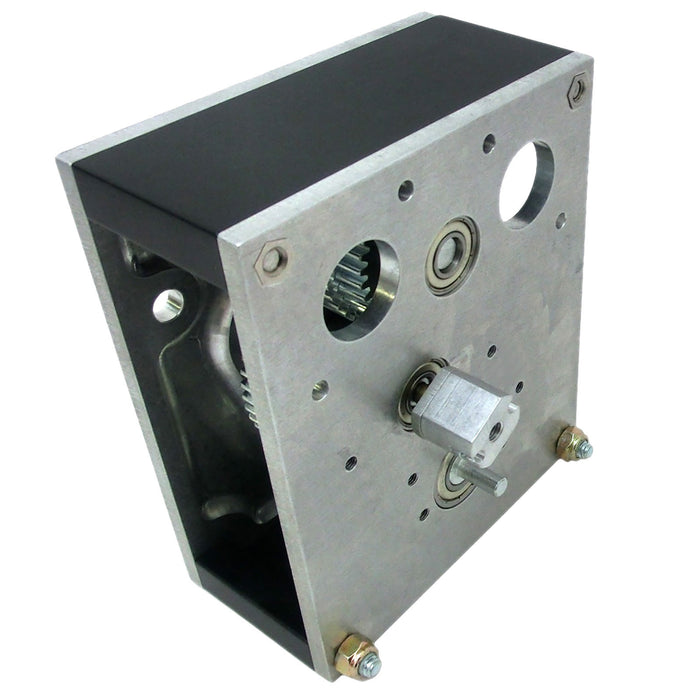

Sonic Shifter - Key - 4.1:1 [Low 14.8:1 / High 3.7:1] - am-2509_37_1 - Image-1 - migrated

Sonic Shifter - Key - 4.1:1 [Low 14.8:1 / High 3.7:1]

by AndyMark
Sold out
$318.00
$318.00 - $318.00
$318.00
$149.00
$149.00 - $149.00
$149.00
SKU am-2509_37
  • Description
  • Specifications

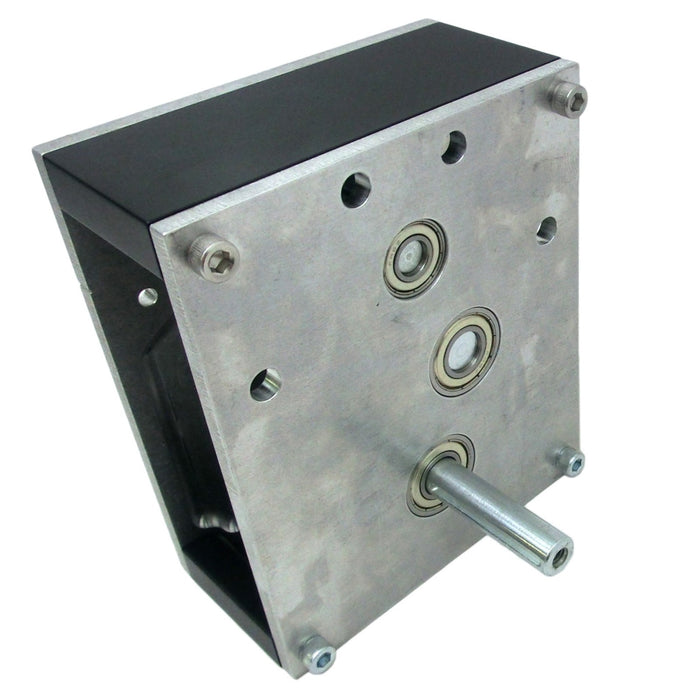

  • This two speed transmission gearbox provides speed and torque when necessary. This shift-on-the-fly gearbox, uses a dog gear shifting method. Motor input accepts two CIM style motors. The output shaft is round 1/2 in. 4140 steel shaft with a 1/8 in. keyway.

    This gearbox is on final clearance, and we recommend looking at the EVO shifter if interested in a wider variety of gear ratio options.

    Key Features:


    • The output shaft is centered on the gearbox.
    • CIM motor inputs centered on the gearbox.
    • The Sonic Shifter is lighter than previous designs.
    • Will be shipped with an am-3132 encoder pre-installed.
    Sonic Shifter Ratio Breakdown:
    A color coded graphic accompanied by a ratio breakdown shows which gears are used where and what ratios they form for each sonic shifter.
    Sonic Shifter Ratio Breakdown

    Shift Style:


    Two shifting methods are available for the Sonic Shifter. The pneumatic method is much stronger and faster than the servo method.
    • Pneumatic:
      • A pneumatic cylinder, Bimba model 04-0.5-DP, 3/4 in. bore x 1/2 in. stroke, (not included) shifts between high and low gear. This cylinder mounts with a 5/8-18 nut (not included). This is a strong, fast method of shifting, lasting under 0.5 seconds and pushing with 26 pounds of force (if using 60 psi). This pneumatic shift can be done while a robot is accelerating.
    • Servo:
      • A Servo Shifting hardware pack is available (am-2297), but not included with this product.
      • A Hi-Tech Servo, model HS-422HD is included in am-2297, using an actuation fork to shift between the 2 gear settings. This is a slow, weaker method of shifting (compared to pneumatic), taking 1.5-2 seconds and pushing with up to 8.5 pounds of force. A robot driver may need to back off of the throttle to let a servo shift gears while moving.

    Motor Input:


    Product Usage:
    All AndyMark gearboxes require grease for proper operation and long life. We suggest using our red tacky grease, am-2768. We also encourage that the user powers the gearbox continuously for 30 minutes without grease to allow the gear teeth to wear in. While we do design with short run times in mind, this 'run in' period for smooth gearbox operation, is recommended. Once this is completed, thorough grease of the gear teeth periodically to ensure smooth operation.

    Thanks to Evan from 2470 and Sean from 2489 for the gearbox name, the "Sonic Shifter."
    • Weight: 4.2 lbs.
