SpinBox Overdrive Gearbox

Name: SpinBox Overdrive Gearbox
Brand: AndyMark
SKU: am-2462
Price: 49.0 USD
Availability: OutOfStock
Rating: 4.0 (2 reviews)

by AndyMark

$79.00 USD

$79.00 USD - $79.00 USD

$79.00 USD

$49.00 USD

$49.00 USD - $49.00 USD

$49.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by the Flyer Gearbox

Description
Specifications
Documentation

Product Usage:
All AndyMark gearboxes require grease for proper operation and long life. We suggest using our red tacky grease, am-2768. We also encourage that the user powers the gearbox continuously for 30 minutes without grease to allow the gear teeth to wear in. While we do design with short run times in mind, this 'run in' period for smooth gearbox operation, is recommended. Once this is completed, thoroughly grease the gear teeth periodically to ensure smooth operation.

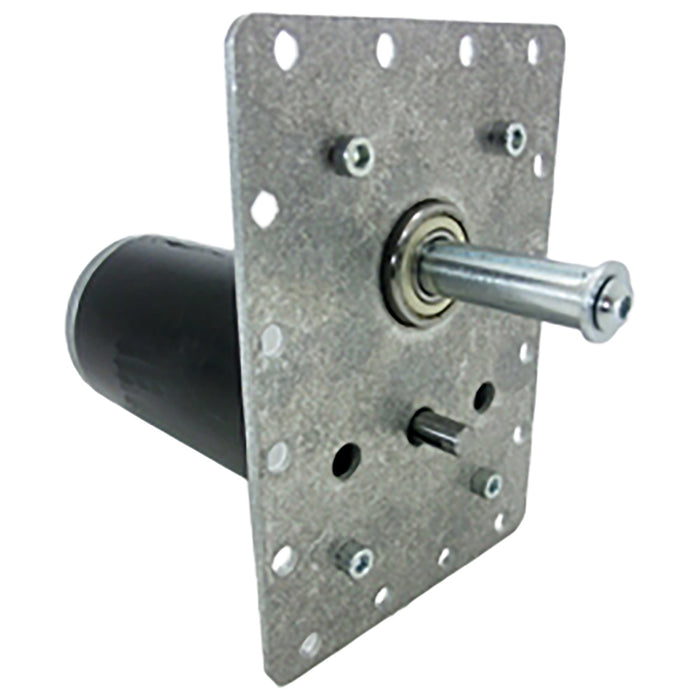

This compact gearbox is designed to provide an overdrive of 1:1.21 from the motor input. The output shaft is well secured and has a 1/2 in. round with 1/8 in. key output. Two different shaft plates are included in this kit, allowing for numerous mounting possibilities. These two different shaft plates can be seen in the product pictures above. This gearbox is shipped unassembled.
Previous versions of this gearbox has a shaft that protruded 1.55 in. from the face of the bearing. In 2020 and beyond the shaft protrudes 2.16 in. from the face of the bearing.

Included Hardware:
- One - SpinBox Housing (am-2456)
- One - SpinBox Shaft Plate, Flange (am-2457)
- One - SpinBox Shaft Plate, Small (am-2463)
- One - CIMple Box & Spinbox Output Shaft (am-0740)
- One - 1/2 in. id Flanged, Shielded Ball Bearing (FR8ZZ) (am-0030)
- One - 185x385, nylon, 0.625 od, 0.385 id, 0.185 thick, white (am-2271)
- One - 2 mm x 2 mm machine key
- One - 1/8x1/8x0700 Machine Key, steel (am-1043)
- Two - #10-32 x 5/8 screws, for motor mounting
- Four - #10-32 x 3/4 screws
- One - 1/4-20 x 1/2 screw
- One - 1/4 washer
- One - 35T 20DP 8 mm Round Bore with 2 mm Keyway, Steel Gear (am-2460)
- One - Gear 29T, 20dp, 500 hex for SpinBox (am-2461)
Motor Input:
- Designed for one CIM motor
Items NOT Included:
- CIM Motor
- Encoder and cable - If you wish to mount an encoder, you will need to use this motor spacer kit.
Ratios:
- Weight: 1.87 lbs.
