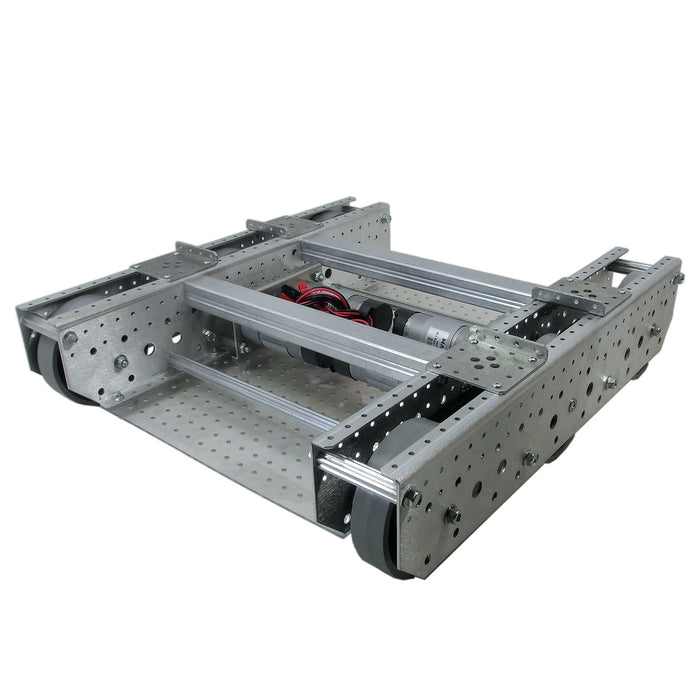

TileRunner Limited Edition

Gear Ratios:

2019 Update:

Part List

• 2 - Chassis Inside Plate (am-3392_Inside)
• 2 - Chassis Outside Plate (am-3392_Outside)
• 4 - 4x4 Plate for Chassis (am-3393)
• 1 - Belly Pan for Chassis (am-3394)
• 2 - Peanut Extrusion, 11.25 in. (am-3395)
• 2 - Churro Tubing, 11.25 in. (am-3398)
• 8 - Churro, 63mm (am-3399)
• 4 - HTD Timing Belt, 9mm wide, 93T (am-3378)
• 8 - 6mm D Bore Double Boss Nub w/Set Screw (am-3215a)
• 4 - 6mm Round Bore Double Boss Nub w/Set Screw (am-3413)
• 14 - 6x12x4mm Flanged Bearing (am-3377)
• 6 - 24T HTD Pulley, 6mm Bore (am-3401)
• 2 - 24T HTD Pulley Extension (am-3404)
• 6 - 40T Gear for PicoBox (am-3407)
• 8 - Spacer for PicoBox (am-3406)
• 2 - 6mm D Shaft x 100mm (am-3226-100)
• 4 - Aluminum Spacer, 5/16 in. OD x .257 ID x 1/4 in. (am-3424)
• 2 - Aluminum Spacer, 8mm OD x 6.15mm ID x 15mm (am-3425)
• 2 - Aluminum Spacer, 12.7mm OD x 6.15mm ID x 9mm (am-3426)
• 1 - Red Tacky Grease, 14.2 gram (am-2768)
• 56 - 6-32 0.5 in. Hex Head Screw (am-1436)
• 8 - 6-32 x 0.75 in. Hex Head Screw (am-1424)
• 16 - 6-32 x 1.25 in. Hex Head Screw (am-1437)
• 32 - Nylock Nut, 6-32 (am-1419)
• 28 - 1/4-20 x 0.75 in. Thread Forming Screw (am-1310)
• 8 - 1/4-20 x 1.75 in. BHCS (am-1420)
• 8 - 1/4-20 Nylock Jam Nut - Bulk Qty (am-1102)
• 24 - M3-0.5 x 5mm SHCS (am-1443)
• 4 - M6-1 x 75mm" SHCS (am-1417)
• 4 - M6 Nylock Nut - Bulk Qty (am-1111)
• 4 - NeveRest Classic 40 Gearmotor (am-2964a)
• 2 - Duo Plate for PicoBox (am-3405)
• 6 - 4 in. Stealth Wheel, 8mm Bore, 80 Durometer Gray (am-2648)
• 2 - Hall Effect Encoder Cable with 4-Pin Connector (am-2992)

Shipping Box size estimate: 12 in. x 19 in. x 3.25 in.

Weight: ~ 11.0 lbs
